Description
Controller Specification:
Maximum Bus Phase Current: 500A/1200A
Peak Power: 76 KW
Operating Temperature Range: -25°C to 80°C
Sinusoidal Vector Control
Voltage Range: 30V-99V (Limit), 48V-84V (Operating)
Controller Features:
- Fine-tunable throttle response
- High-reliability redundant design
- Adaptive compensation for low throttle at low battery levels
- 3 power modes, 5 riding modes for quick switching
- 5 regenerative braking modes for quick switching
- Linear regenerative electronic braking, energy-saving up to 30%
- Customizable super-linear throttle handle
- Customizable throttle curve, burst power, high-speed power compensation, speed percentage
- Compatible with mainstream models including Light Bee, Ultra Bee, TALARIA Sting, TALARIA X3, 79 bike Falcon
- Full-function APP, available for both Apple and Android devices
- High-resolution color screen instrument panel
- Sensory unlocking
- Bluetooth binding with battery BMS for the instrument panel
- CNC radiator
- IP67 waterproof for the entire system
Package Contents:

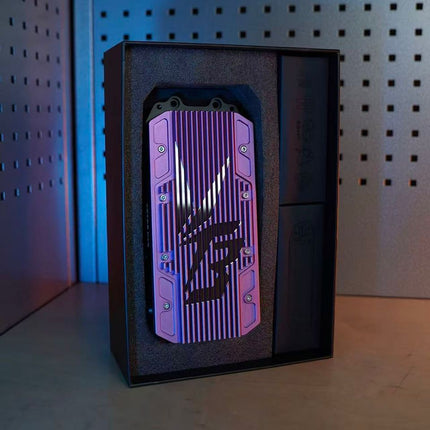

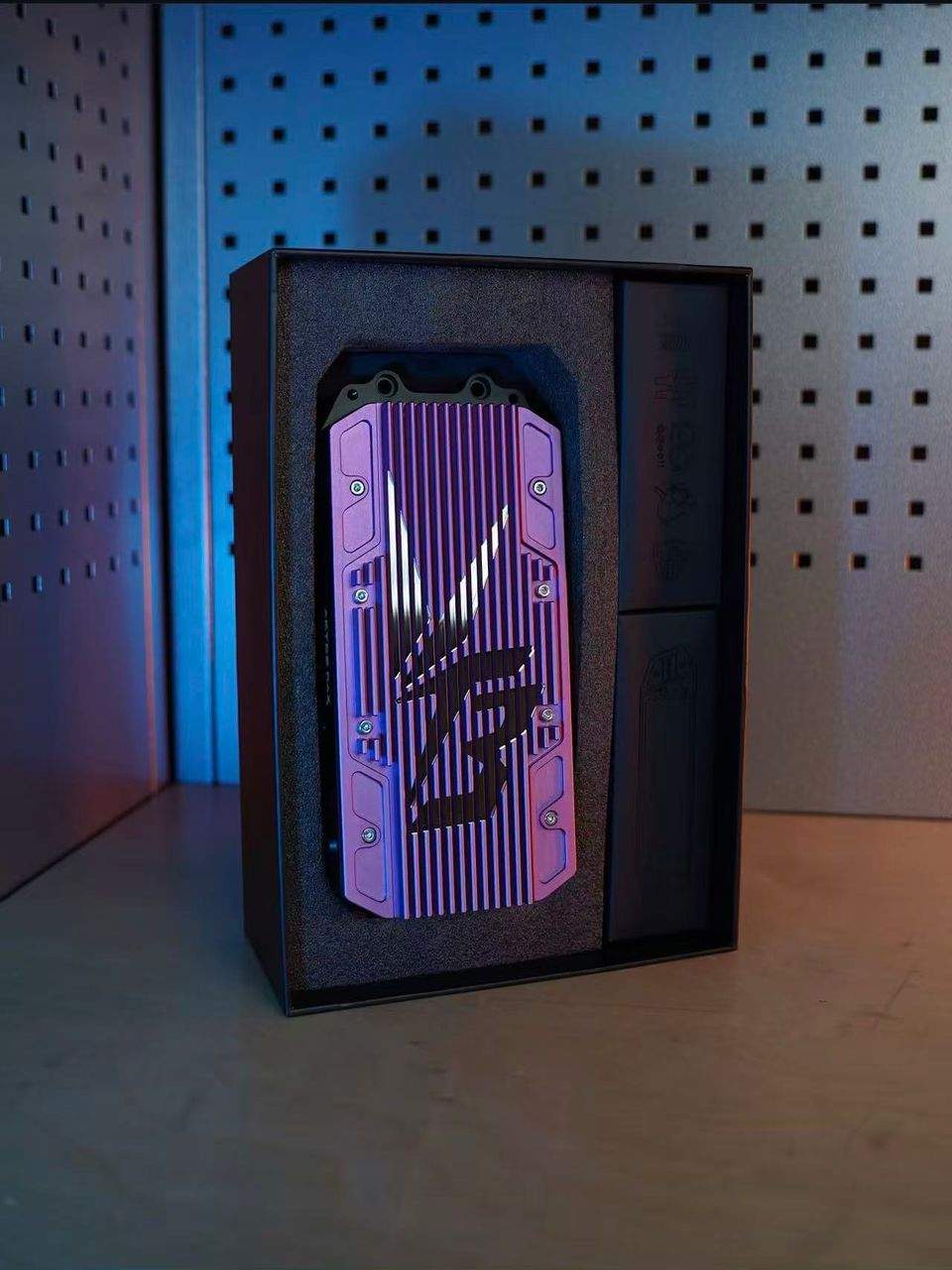

Controller x1
Color Screen Instrument Panel x1
Instrument Panel Bracket x1
Switch Assembly x1
Thumb Throttle x1
Vehicle-specific Adapter Cable x1
Compatible Motors:
VTB Beast 28kW
VTB Beast 35kW
Sur-Ron Light Bee Factory
Sur-Ron Ultra Bee Factory
TALARIA Sting Factory
79 bike Falcon Factory
QS165
LTXS
Sotion FW01
Sotion Talaria
Compatible Batteries:
Series 16-22, compatible with various models of both factory and modified batteries.
