Description

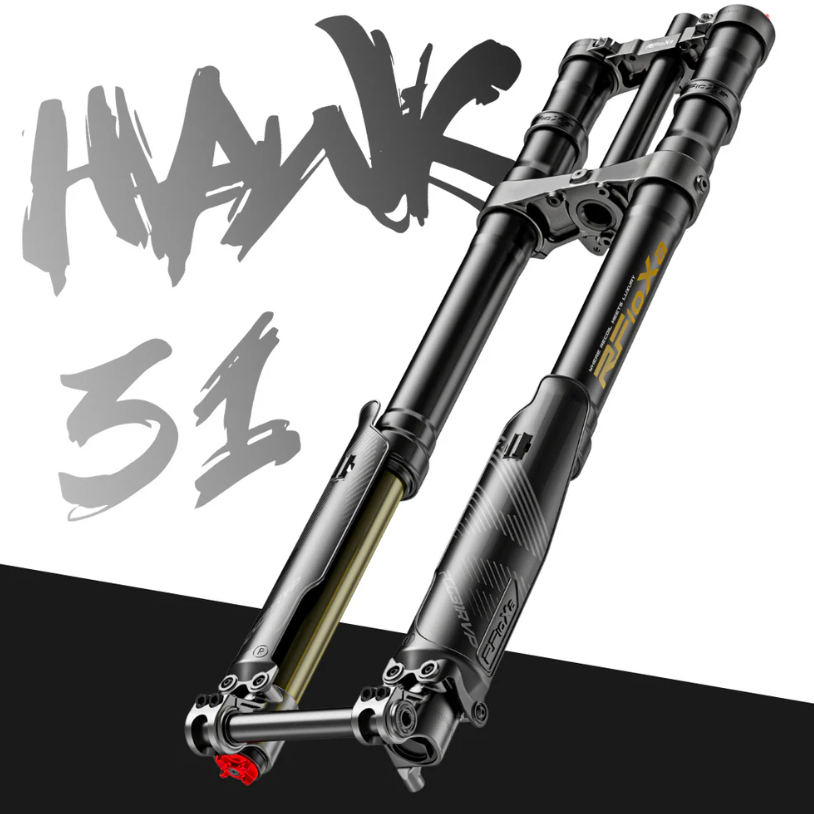

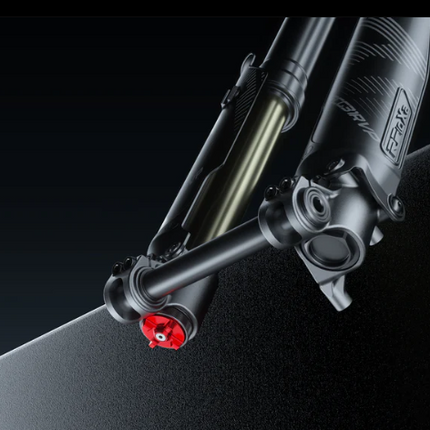

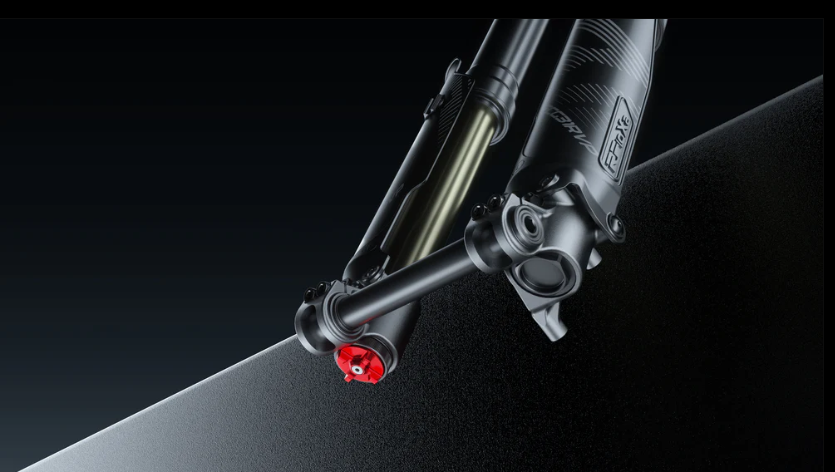

① High-Performance Design💥 -- The FCG31RVP front fork features an impressive travel range of 203mm (if need up to 228mm, need contact us to customize) and is designed for top-tier performance in downhill and off-road biking. With a stanchion diameter of 37mm and a caliper mount spacing of 74mm, it’s compatible with 203mm disc brakes (with options for upgrades), making it ideal for electric dirt bikes and downhill bikes.

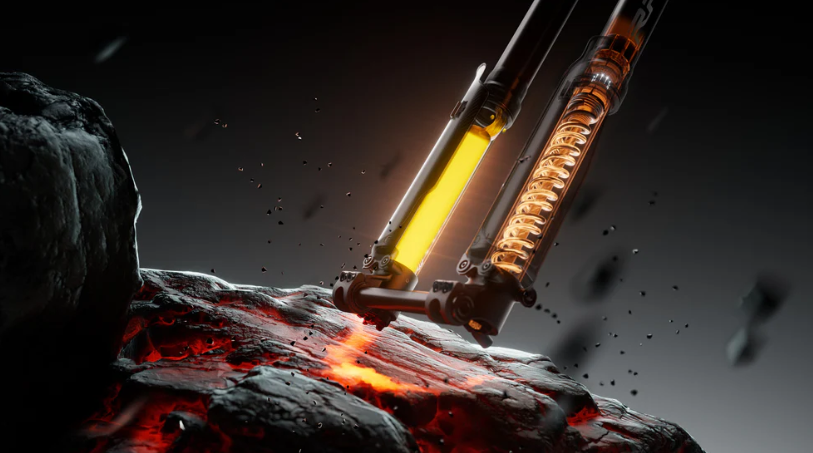

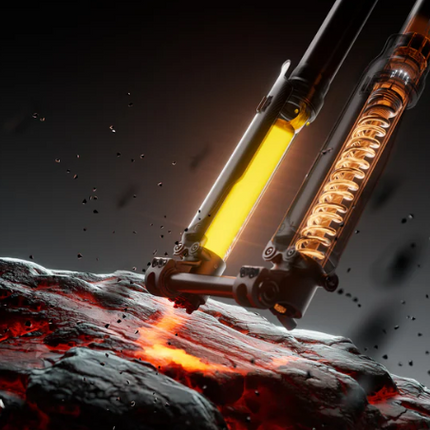

② Advanced Suspension Technology💥 -- This fork employs an inverted oil-spring damping system with asymmetrical left and right legs for a unique, independent structure. It includes multi-stage adjustments for high-speed compression damping, low-speed compression damping, rebound damping, and spring preload, allowing for precise tuning to match your riding style and terrain.
③ Robust Build Quality💥 -- Constructed with AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum alloy for the fork tubes, the FCG31RVP is built for durability and strength. The use of 55CRSI spring wire ensures resilience and performance under stress.

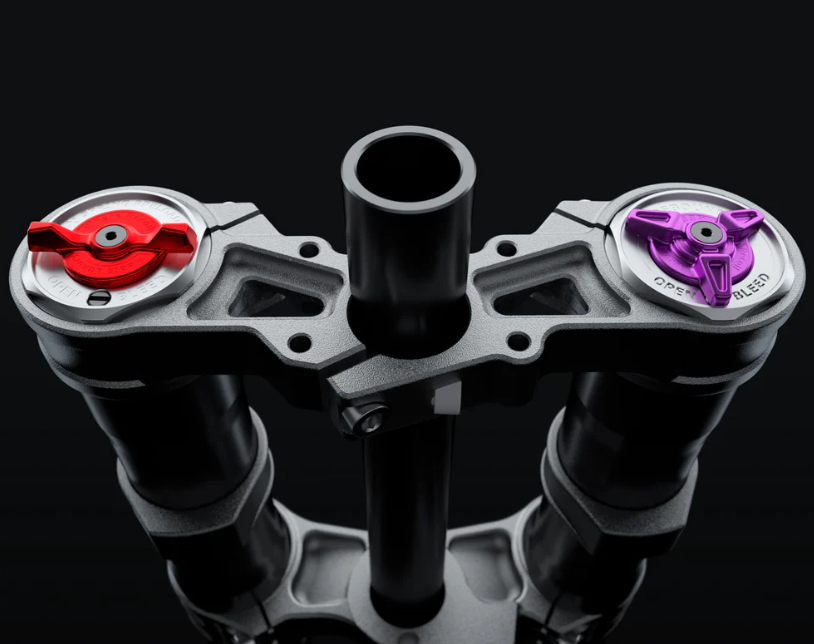

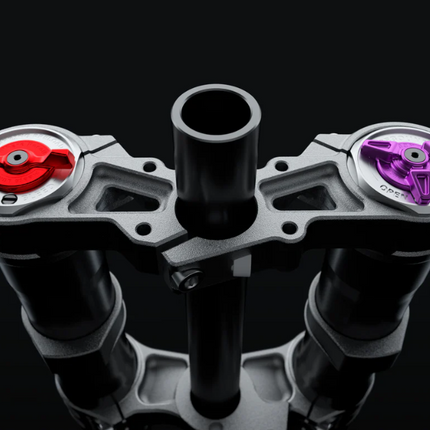

④ Customizable Adjustments💥 -- All adjustment functions, including compression, rebound, and preload settings, are controlled by easy-to-use manual knobs. This allows for quick and convenient tuning in various riding conditions, ensuring optimal performance and comfort.
⑤ Enhanced Bottom-Out Support💥 -- The fork features a unique oil pressure bottom-out design that provides strong support at the end of the travel, enhancing stability and reducing the impact of hard hits.
⑥ Reliable Damping Performance💥 -- The internal damping system includes dual compression valve plates, ensuring stable and reliable compression damping. The fork uses high-quality, low-friction, low-freezing-point shock absorber oil to maintain consistent damping performance, even in extreme conditions.
Weight: (compatible with 26 inches)
- 45lbs spring - ≤100kg
- 60lbs spring - 100kg-130kg
- 45-60lbs progressive spring - 80kg-130kg
FEATURES:
-
Center Distance: 750-800mm
-
Main Piston Travel: 203-228mm
-
Tube Diameter: ∅37mm
-
Caliper Mount Spacing: 74mm
-
Disc Brake Size: ∅203mm (Upgradeable)
-
Suitable For: Electric Dirt Bikes, Downhill Bikes
-
Damping System: Inverted Oil-Spring
-
Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
-
Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
-
Spring Wire: 55CRSI
