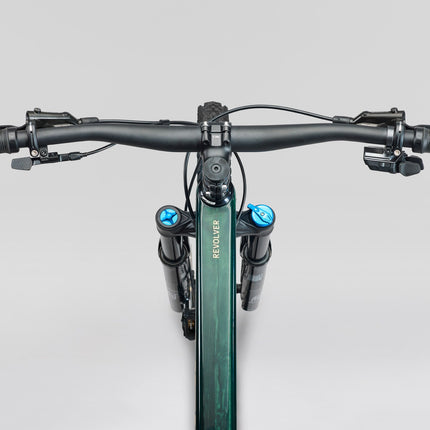

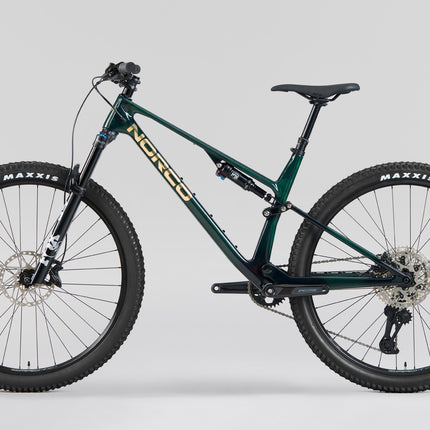

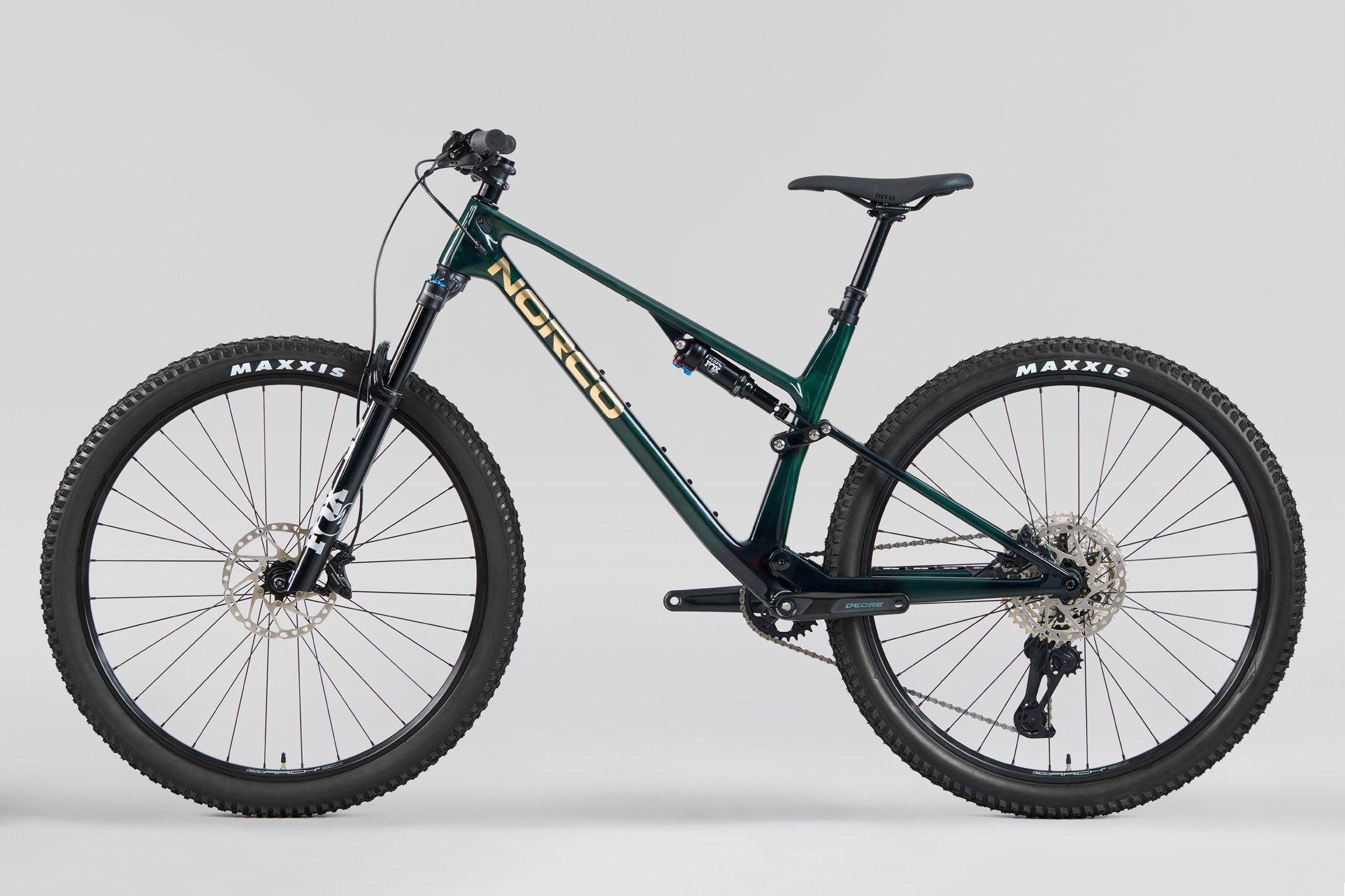

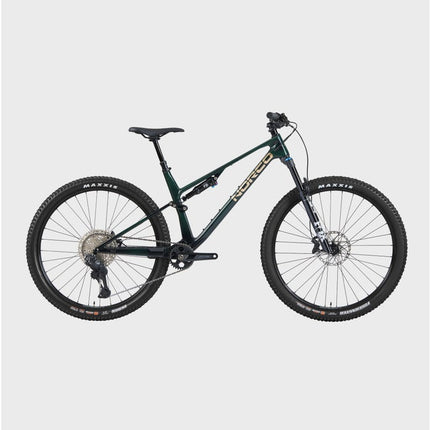

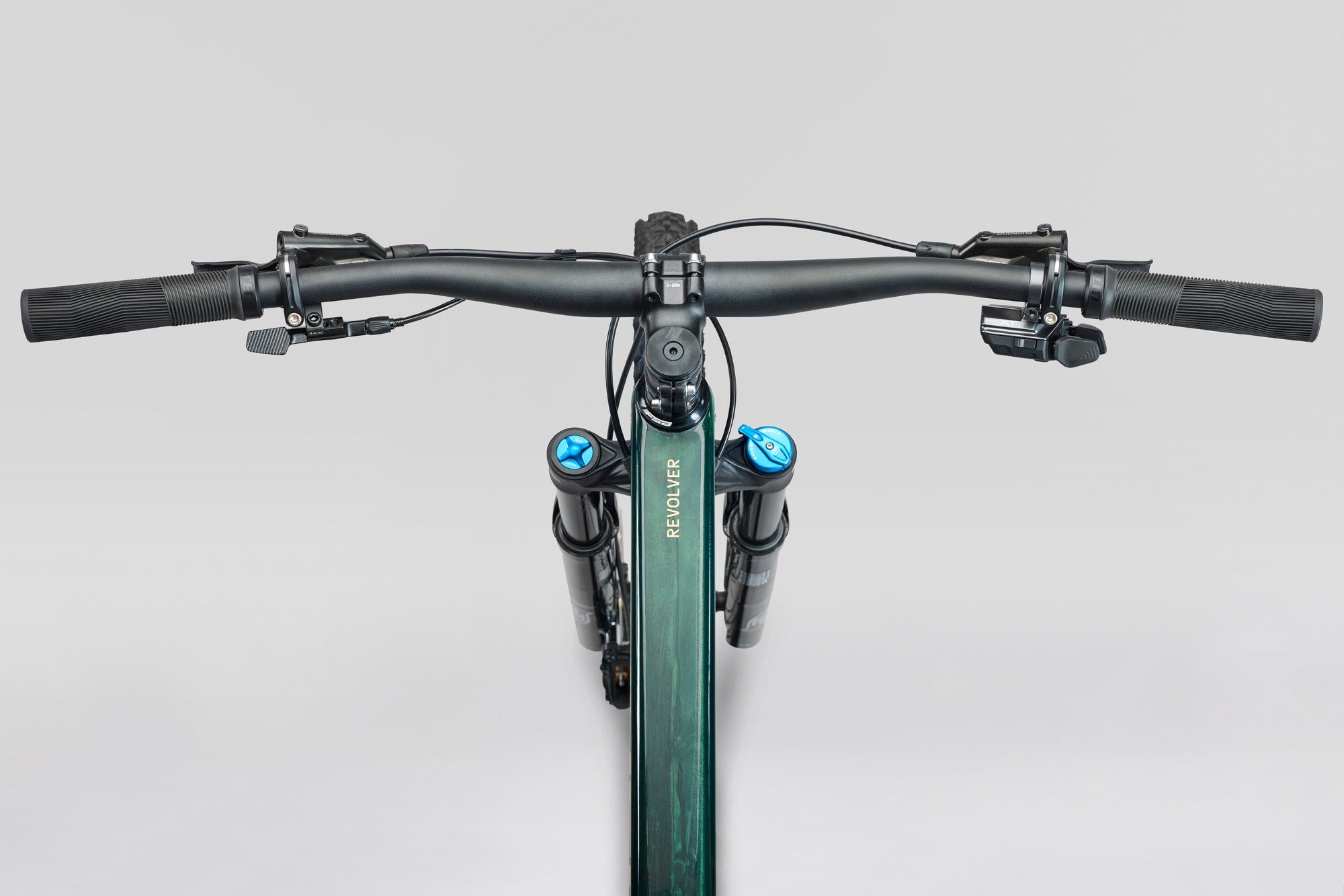

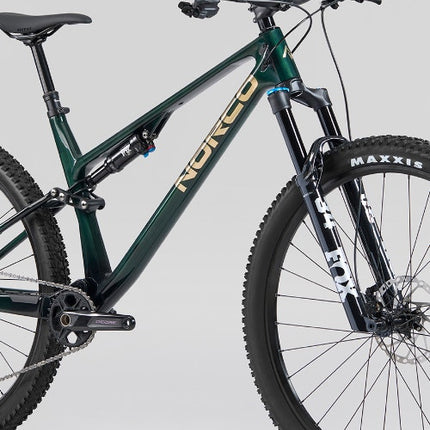

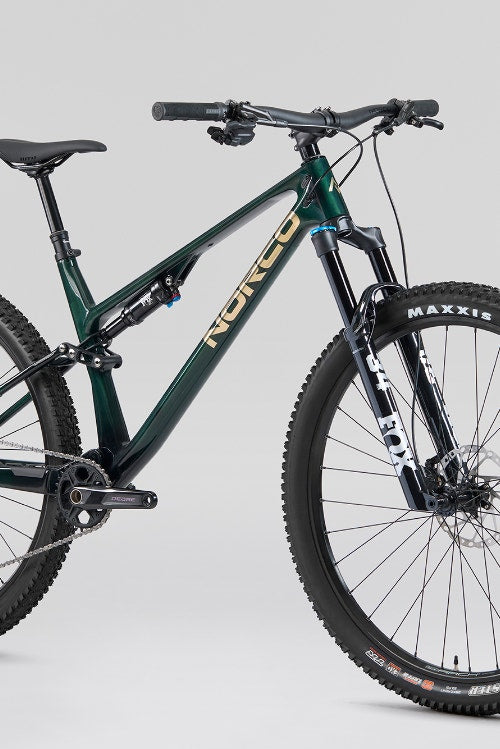

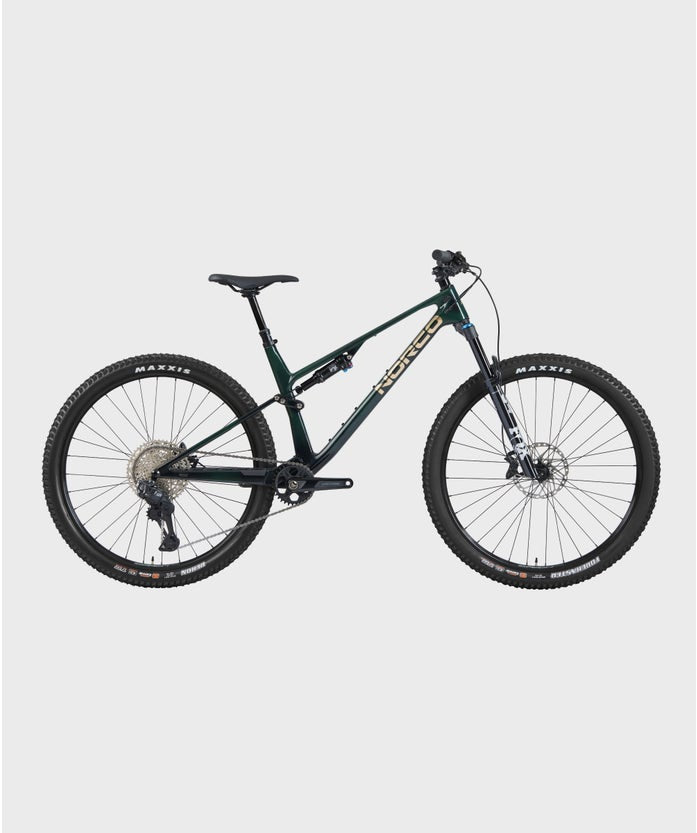

NORCO REVOLVER FS C2 29 BIKE

Description

NORCO REVOLVER FS C2 29 BIKE

  • Discipline: XC / Downcountry
  • Material: Carbon Fibre
  • Rear Travel: 120mm / Fork Travel: 130mm
  • ColourGreen

Revolver is the lightest full-suspension frame Norco has ever built, with a surprising amount of capability. At the core of its efficiency is our advanced approach to a Flex-Pivot suspension design.

KEY FEATURES

  • Lightweight, carbon frame (1625 g)
  • Titanium hardware, micro link and double-row Enduro bearings
  • Low standover height
  • Long dropper posts
  • Dual bottle mounts (S2-5)
  • ISCG / UDH
  • Cable guide liners
  • Slim frame design
  • Oversize chainstays
  • Compact design link and hidden shock

With aggressive XC geometry and a carbon frame layup optimized for each frame size to enhance stiffness and compliance, Revolver maintains consistent kinematic and weight distribution across all sizes. It's a strong foundation for any rider to drive up and charge down, beyond the expected.

The new Revolver is the lightest full-suspension frame Norco has ever built—450g lighter than the previous generation—making it more than ready for the demands of World Cup racing.

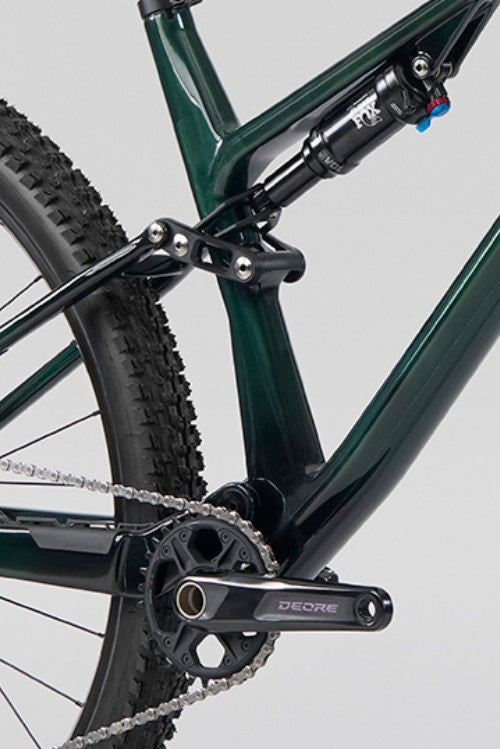

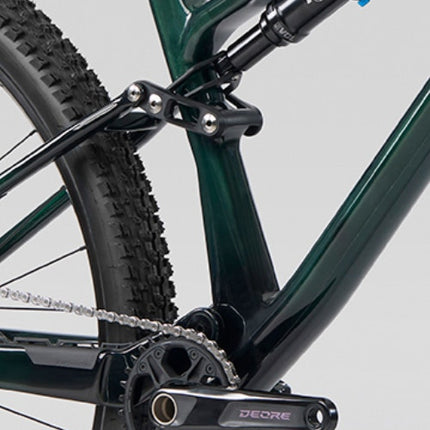

Norco’s Flex-Pivot design takes a unique approach to give the Revolver trail-ready performance with a lightweight inline XC air shock, rivaling heavier and larger volume air shocks. All the suspension performance
without the weight!

The raw or tinted clear coat paint is half the weight of standard paint, while titanium hardware, compact double-row Enduro bearings, and compact links enhance durability and precision.

SPECIFICATION

FRAME CARBON FRAME, 120MM TRAVEL, UDH, EAGLE TRANSMISSION COMPATIBLE, RIDE ALIGNED™
FORK FOX 34SL PERFORMANCE FLOAT 130MM, GRIP 2 FORK
REAR SHOCK FOX FLOAT SL PERFORMANCE, 190X45MM, STANDARD
HEADSET FSA NO 42/48ACB INTEGRATED HEADSET, TAPERED 1-1/8" - 1.5"
GRIPS WTB WAVELENGTH
HANDLE BAR NORCO 6061, 760 (S1,S2,S3) 780MM (S4,S5), 20MM RISE
STEM ALLOY CNC, 50MM LENGTH, 35MM CLAMP
SEAT POST TRANZX YSI36, 31.6MM, 120MM (S1, S2) - 150MM (S3) - 170MM (S4) - 200MM (S5)
SADDLE WTB SILVERADO MEDIUM
FRONT BRAKE SHIMANO DEORE MT520, 4-PISTON, METALLIC PADS
FRONT BRAKE ROTOR SHIMANO SM-RT64, 180MM, C-LOCK
REAR BRAKE SHIMANO DEORE MT520, 4-PISTON, METALLIC PADS
REAR BRAKE ROTOR SHIMANO SM-RT64, 180MM, C-LOCK
SHIFTER REAR SHIMANO DEORE XT DI2
REAR DERAILLEUR SHIMANO DEORE XT DI2
CASSETTE SHIMANO DEORE CS-M6100-12, 10-51T, 12SP
CHAIN SHIMANO DEORE CN-M6100-12, 12SP
CRANKSET SHIMANO DEORE FC-M6120, 32T, CL55, 165MM (S1), 170MM (S2,S3), 175MM (S4,S5)
BOTTOM BRACKET SHIMANO BB-MT501, BSA 73MM
FRONT HUB SHIMANO DEORE HB-TC500, 15X110MM BOOST, 32H, C-LOCK
REAR HUB SHIMANO DEORE FH-TC500, 148X12 BOOST, MICROSPLINE, 32H, C-LOCK
SPOKES/NIPPLES STAINLESS STEEL
RIMS STANS ARCH D, 28MM ID, 32H, 29"
FRONT TYRE MAXXIS FOREKASTER, 3C MAXXTERRA EXO, 29X2.40"
REAR TYRE MAXXIS REKON, 3C MAXXTERRA EXO, 29X2.40"

Please note: Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.


SIZE 1 SIZE 2 SIZE 3 SIZE 4 SIZE 5
WHEEL SIZE 29" / 29"
TRAVEL (MM FRONT / MM REAR) 130/120MM
REACH 418 443 468 493 518
STACK 589 598 607 616 625
HTA HEAD TUBE ANGLE 66.5
OS FORK OFFSET 44
ST SEAT TUBE LENGTH 392 434 453 477 491
STA EFFECTIVE SEAT TUBE ANGLE 74.50 75 75.25 75.50
RC REAR CENTRE LENGTH 422 426 430 434 438
RC REAR CENTRE LENGTH AT SAG 422 426 430 434 438
BB BOTTOM BRACKET DROP 32/32
BBH BOTTOM BRACKET HEIGHT 342
HTT HORIZONTAL TOP TUBE 581 606 631 655 680
WB WHEELBASE 1135 1168 1201 1234 1267
SOH STANDOVER 683 687 691 698 704
HT HEAD TUBE LENGTH 90 100 110 120 130
TRAIL 118
RECOMMENDED SEATPOST DROP 120 120 150 170 200
MAXIMUM POST INSERTION 220 220 250 270 300
STEM LENGTH 50
CRANK LENGTH 165 170 170 175 175
TYRE SIZE 2.35" - 2.5"
WATER BOTTLE COMPATIBLE 1 X 750ML 2X 620ML OR 1 X 750ML 2X 620ML OR 1 X 750ML 2X 750ML 2X 750ML

SIZE GUIDE

NORCO REVOLVER FS C2 29 BIKE

Product form

Free pickup in our shop(s)

1 in stock

£5,499.00 Incl. VAT

    • Fast shipping
    • Guarunteed top quality components
    • Same day collection in store

    Description

    NORCO REVOLVER FS C2 29 BIKE

    • Discipline: XC / Downcountry
    • Material: Carbon Fibre
    • Rear Travel: 120mm / Fork Travel: 130mm
    • ColourGreen

    Revolver is the lightest full-suspension frame Norco has ever built, with a surprising amount of capability. At the core of its efficiency is our advanced approach to a Flex-Pivot suspension design.

    KEY FEATURES

    • Lightweight, carbon frame (1625 g)
    • Titanium hardware, micro link and double-row Enduro bearings
    • Low standover height
    • Long dropper posts
    • Dual bottle mounts (S2-5)
    • ISCG / UDH
    • Cable guide liners
    • Slim frame design
    • Oversize chainstays
    • Compact design link and hidden shock

    With aggressive XC geometry and a carbon frame layup optimized for each frame size to enhance stiffness and compliance, Revolver maintains consistent kinematic and weight distribution across all sizes. It's a strong foundation for any rider to drive up and charge down, beyond the expected.

    The new Revolver is the lightest full-suspension frame Norco has ever built—450g lighter than the previous generation—making it more than ready for the demands of World Cup racing.

    Norco’s Flex-Pivot design takes a unique approach to give the Revolver trail-ready performance with a lightweight inline XC air shock, rivaling heavier and larger volume air shocks. All the suspension performance
    without the weight!

    The raw or tinted clear coat paint is half the weight of standard paint, while titanium hardware, compact double-row Enduro bearings, and compact links enhance durability and precision.

    SPECIFICATION

    FRAME CARBON FRAME, 120MM TRAVEL, UDH, EAGLE TRANSMISSION COMPATIBLE, RIDE ALIGNED™
    FORK FOX 34SL PERFORMANCE FLOAT 130MM, GRIP 2 FORK
    REAR SHOCK FOX FLOAT SL PERFORMANCE, 190X45MM, STANDARD
    HEADSET FSA NO 42/48ACB INTEGRATED HEADSET, TAPERED 1-1/8" - 1.5"
    GRIPS WTB WAVELENGTH
    HANDLE BAR NORCO 6061, 760 (S1,S2,S3) 780MM (S4,S5), 20MM RISE
    STEM ALLOY CNC, 50MM LENGTH, 35MM CLAMP
    SEAT POST TRANZX YSI36, 31.6MM, 120MM (S1, S2) - 150MM (S3) - 170MM (S4) - 200MM (S5)
    SADDLE WTB SILVERADO MEDIUM
    FRONT BRAKE SHIMANO DEORE MT520, 4-PISTON, METALLIC PADS
    FRONT BRAKE ROTOR SHIMANO SM-RT64, 180MM, C-LOCK
    REAR BRAKE SHIMANO DEORE MT520, 4-PISTON, METALLIC PADS
    REAR BRAKE ROTOR SHIMANO SM-RT64, 180MM, C-LOCK
    SHIFTER REAR SHIMANO DEORE XT DI2
    REAR DERAILLEUR SHIMANO DEORE XT DI2
    CASSETTE SHIMANO DEORE CS-M6100-12, 10-51T, 12SP
    CHAIN SHIMANO DEORE CN-M6100-12, 12SP
    CRANKSET SHIMANO DEORE FC-M6120, 32T, CL55, 165MM (S1), 170MM (S2,S3), 175MM (S4,S5)
    BOTTOM BRACKET SHIMANO BB-MT501, BSA 73MM
    FRONT HUB SHIMANO DEORE HB-TC500, 15X110MM BOOST, 32H, C-LOCK
    REAR HUB SHIMANO DEORE FH-TC500, 148X12 BOOST, MICROSPLINE, 32H, C-LOCK
    SPOKES/NIPPLES STAINLESS STEEL
    RIMS STANS ARCH D, 28MM ID, 32H, 29"
    FRONT TYRE MAXXIS FOREKASTER, 3C MAXXTERRA EXO, 29X2.40"
    REAR TYRE MAXXIS REKON, 3C MAXXTERRA EXO, 29X2.40"

    Please note: Specifications are subject to change without notice.

    GEOMETRY

    All measurements are shown in millimetres.


    SIZE 1 SIZE 2 SIZE 3 SIZE 4 SIZE 5
    WHEEL SIZE 29" / 29"
    TRAVEL (MM FRONT / MM REAR) 130/120MM
    REACH 418 443 468 493 518
    STACK 589 598 607 616 625
    HTA HEAD TUBE ANGLE 66.5
    OS FORK OFFSET 44
    ST SEAT TUBE LENGTH 392 434 453 477 491
    STA EFFECTIVE SEAT TUBE ANGLE 74.50 75 75.25 75.50
    RC REAR CENTRE LENGTH 422 426 430 434 438
    RC REAR CENTRE LENGTH AT SAG 422 426 430 434 438
    BB BOTTOM BRACKET DROP 32/32
    BBH BOTTOM BRACKET HEIGHT 342
    HTT HORIZONTAL TOP TUBE 581 606 631 655 680
    WB WHEELBASE 1135 1168 1201 1234 1267
    SOH STANDOVER 683 687 691 698 704
    HT HEAD TUBE LENGTH 90 100 110 120 130
    TRAIL 118
    RECOMMENDED SEATPOST DROP 120 120 150 170 200
    MAXIMUM POST INSERTION 220 220 250 270 300
    STEM LENGTH 50
    CRANK LENGTH 165 170 170 175 175
    TYRE SIZE 2.35" - 2.5"
    WATER BOTTLE COMPATIBLE 1 X 750ML 2X 620ML OR 1 X 750ML 2X 620ML OR 1 X 750ML 2X 750ML 2X 750ML

    SIZE GUIDE
