Description

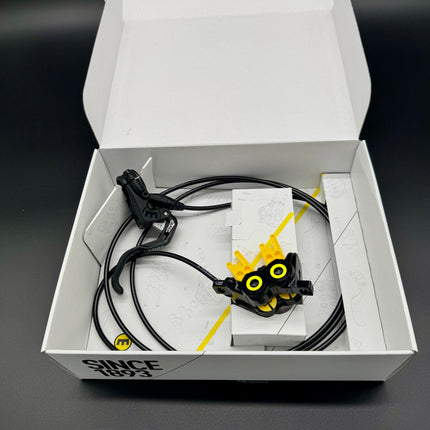

MT5 PRO, 1-finger aluminium light weight lever blade, for left, 2,200 mm tubing length, single brake, incl. accessories.
Fits all models of Sur-Ron Light Bee
Fits Talaria Sting MX3 / MX4 / X3 Pro
MT5 PRO - E-BIKE OPTIMIZED
This is MAGURA’s top model for more demanding e-bike use. With its powerful 4-pistons calipers, the MT5 PRO offers safe performance at high speeds, even on heavy e-bikes. The PRO system is based on the MAGURA MT features. Due to the combination with SPORT brake pads and the MDR-C or MDR-P rotors it even offers higher braking forces and stability.

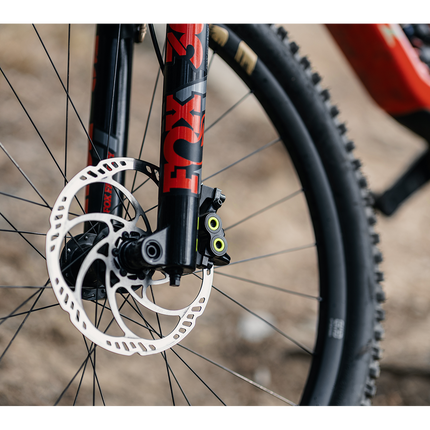

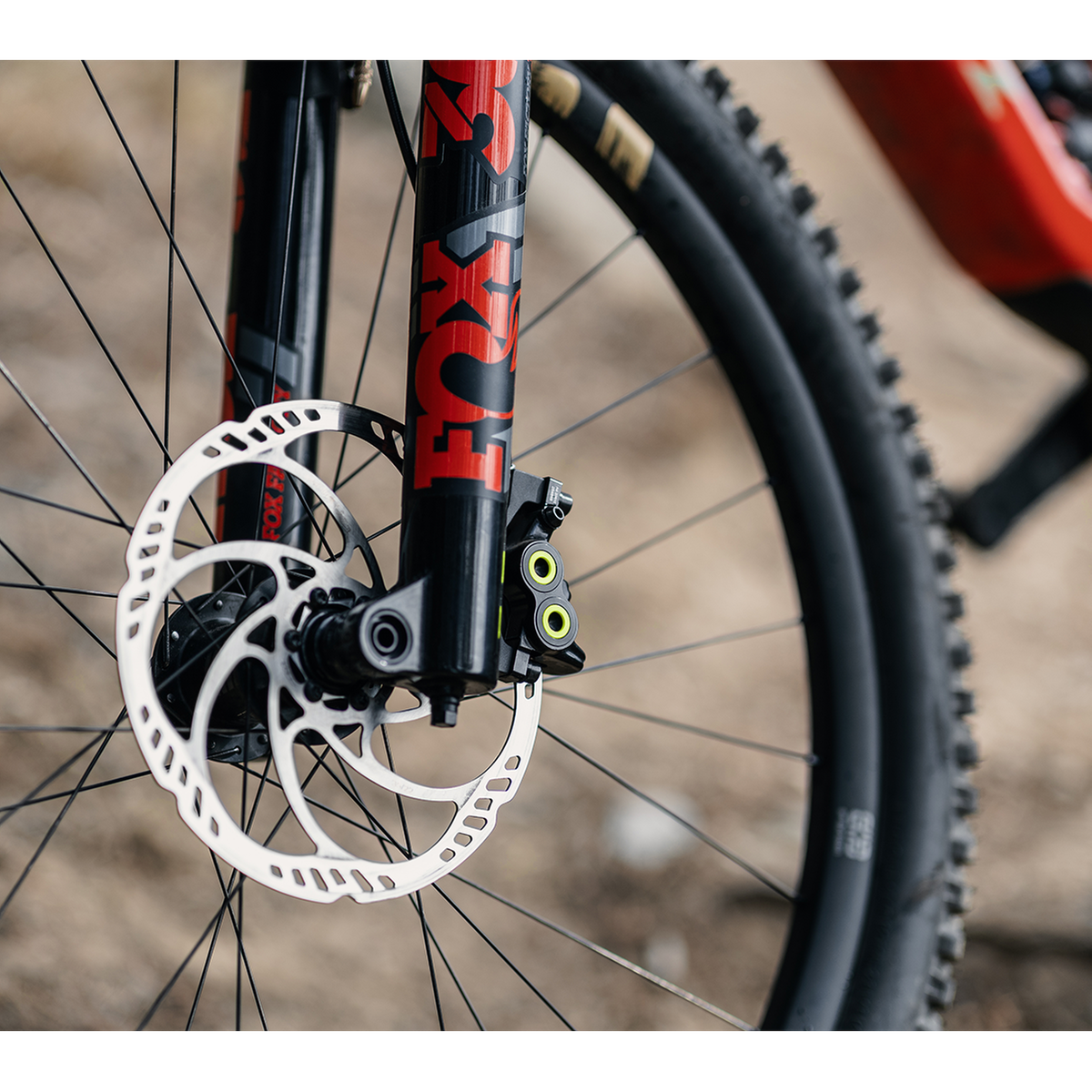

Suitable for mounting left - front.

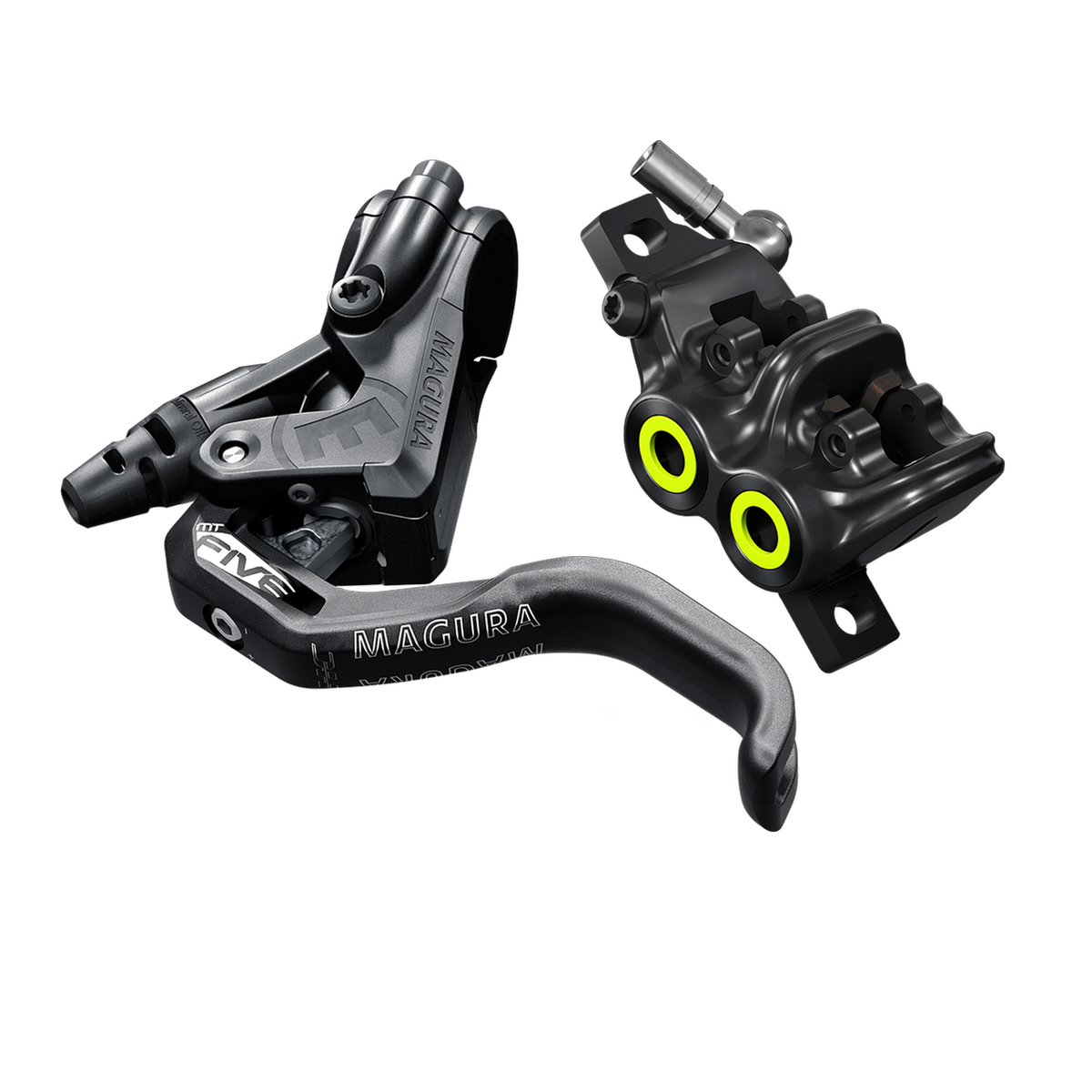

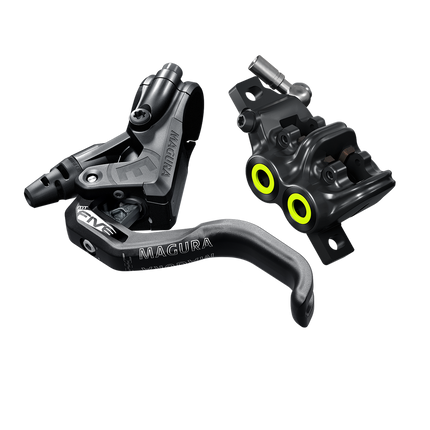

Magura MT5 PRO is Magura’s top model for more demanding E-Bike use, the MT5 PRO is a 4-piston brake caliper weighing in at 255g with a Carbotecture Master Cylinder and a 1-finger HC lever blade.
- Tubing length: 2,200 mm
- Weight: 255 g
- Material housing: Carbotecture®
- Lever blade: 1-finger HC lever blade
- Reach Adjust: T25 tool
- Colour: Master black / caliper black
- Accent colour: Black, Neon yellow
- Recommended rotor: MDR-C 180 mm / 203 mm; MDR-P 203 mm / 220 mm
DESIGNED AND ENGINEERED IN GERMANY.
- Mounting type: Postmount
-
Application: eMTB, Trekking, Gravity, Downhill, Enduro, Trail, All Mountain, eMTB, Dirt Jump,
-
Mounting site: Front wheel, Rear wheel
-
Brake type: Disc brakes
-
Lever blade type: 1-finger HC lever blade
-
Tubing connection: Rotatable tube connection
-
Brake pad type: 8.S
-
Material of lever blade: Aluminium
-
Material housing: Carbotecture®
-
Reach Adjust: T25 tool
-
Gearshift compatibility: Shimano I-Spec I+II, SRAM Trigger
-
Flip Flop: Yes
-
Tubing length: 2,200 mm
-
Pistons: 4 pistons
-
Weight: 255 g
-
Colour: Black, Neon yellow
Description
- The radial design of the brake master ensures low friction, reducing transmission losses. It also enables the conversion of (small / large) transmission ratios, which improves modulation and control
- The 4-piston brake calliper forged in one piece has a high degree of rigidity, resulting in outstanding braking force and the best possible modulation
- Compared to the MT7, the MT5’s increased piston retraction makes it particularly dependable in continuous use. Mounting is also fast and the MT5 is friction-free

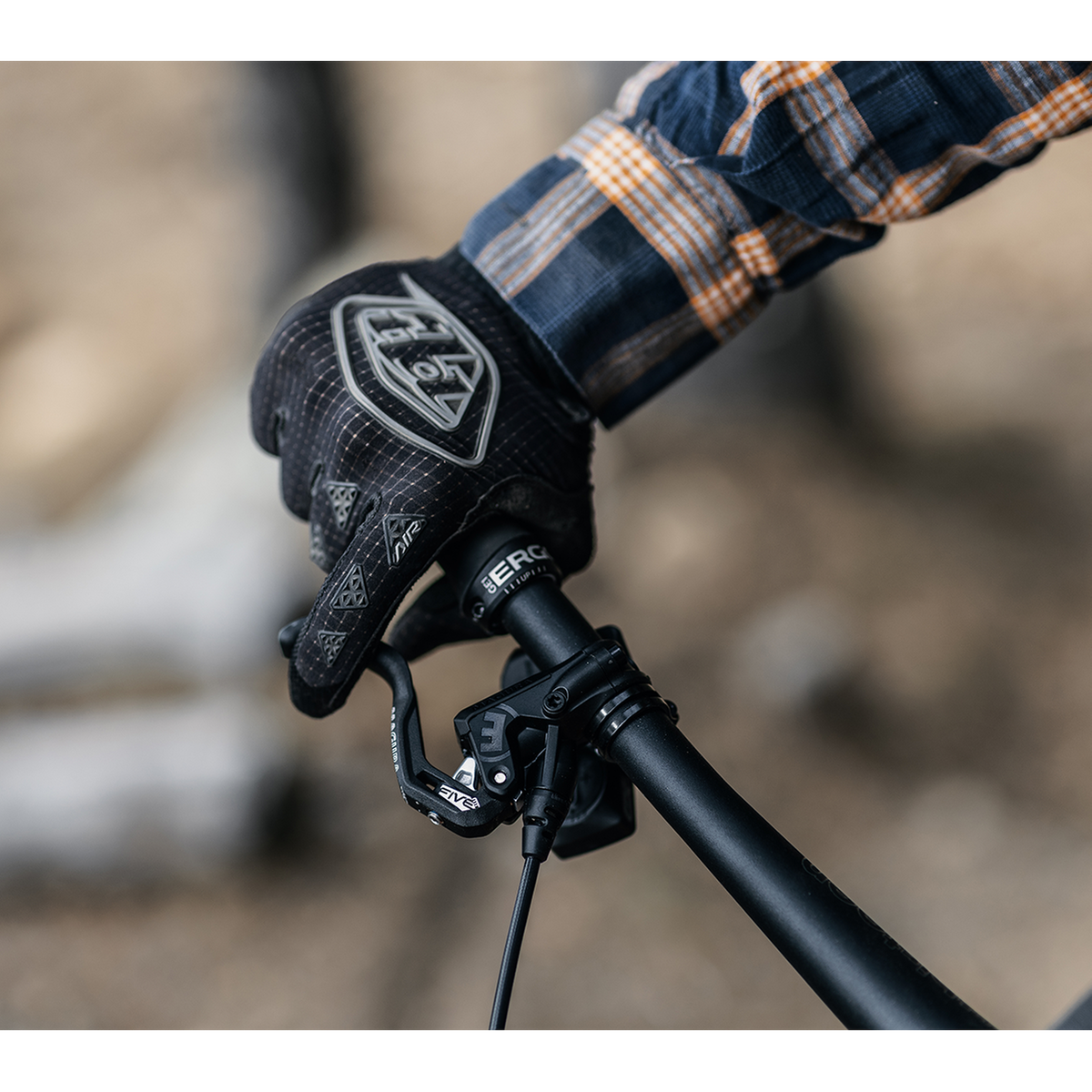

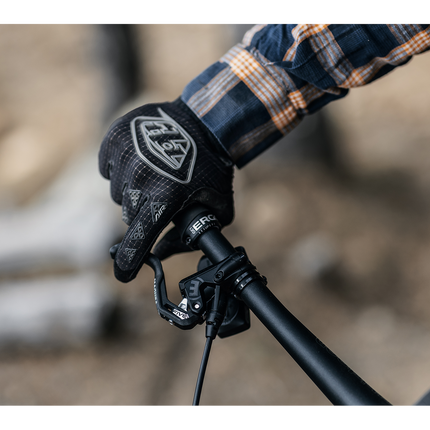

- The 1-finger HC lever has been ergonomically optimised and is now also suitable for riders with smaller hands
- The changed geometry allows it to be ridden closer to the handlebars for more comfort on long descents and increased control

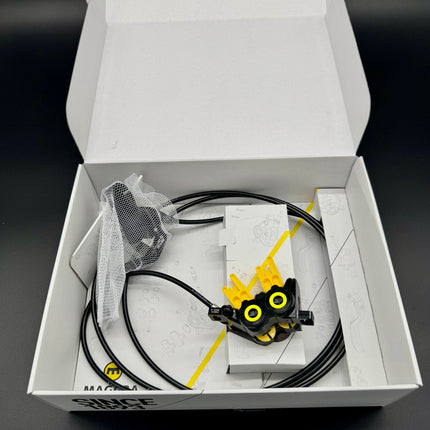

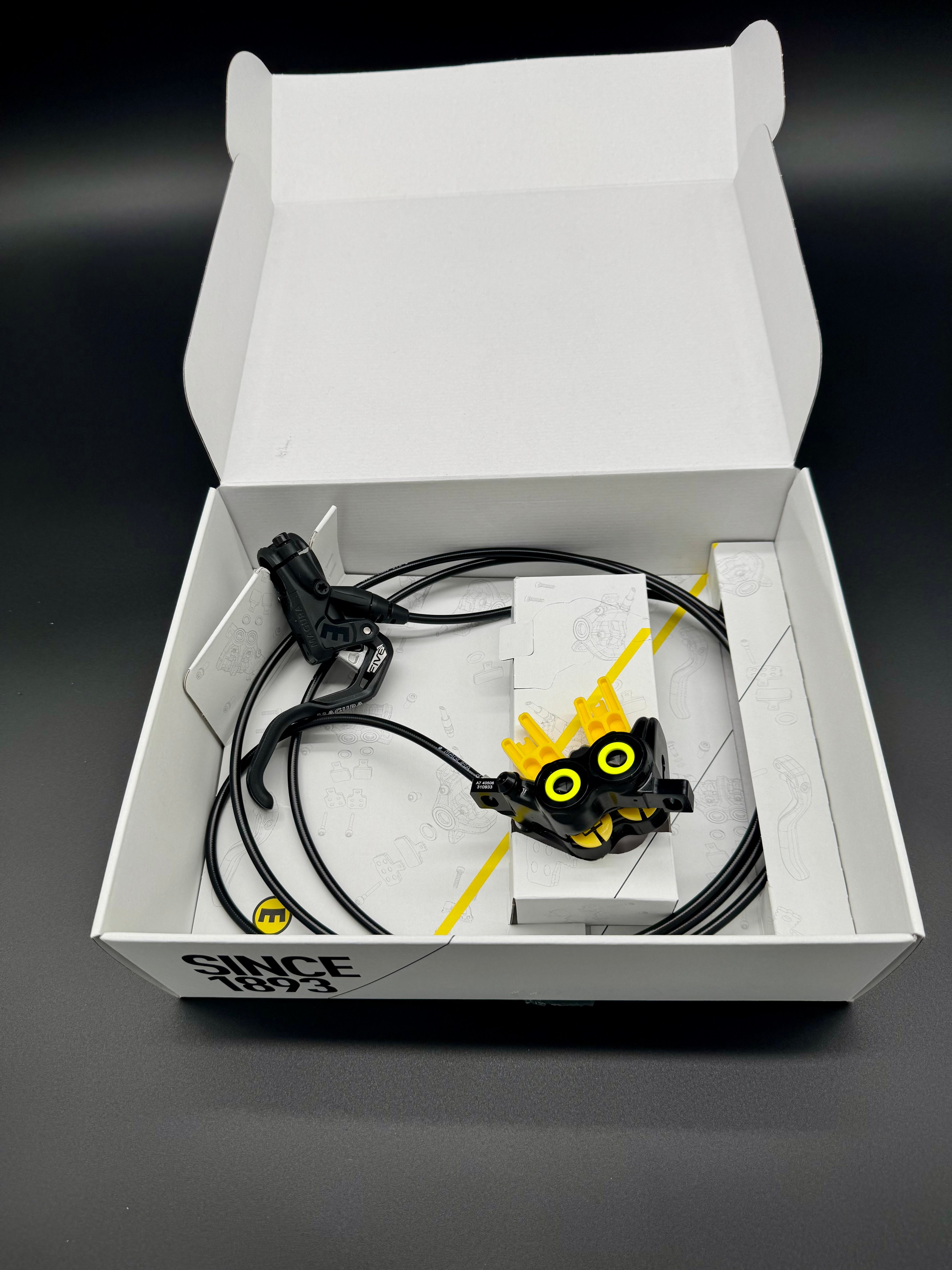

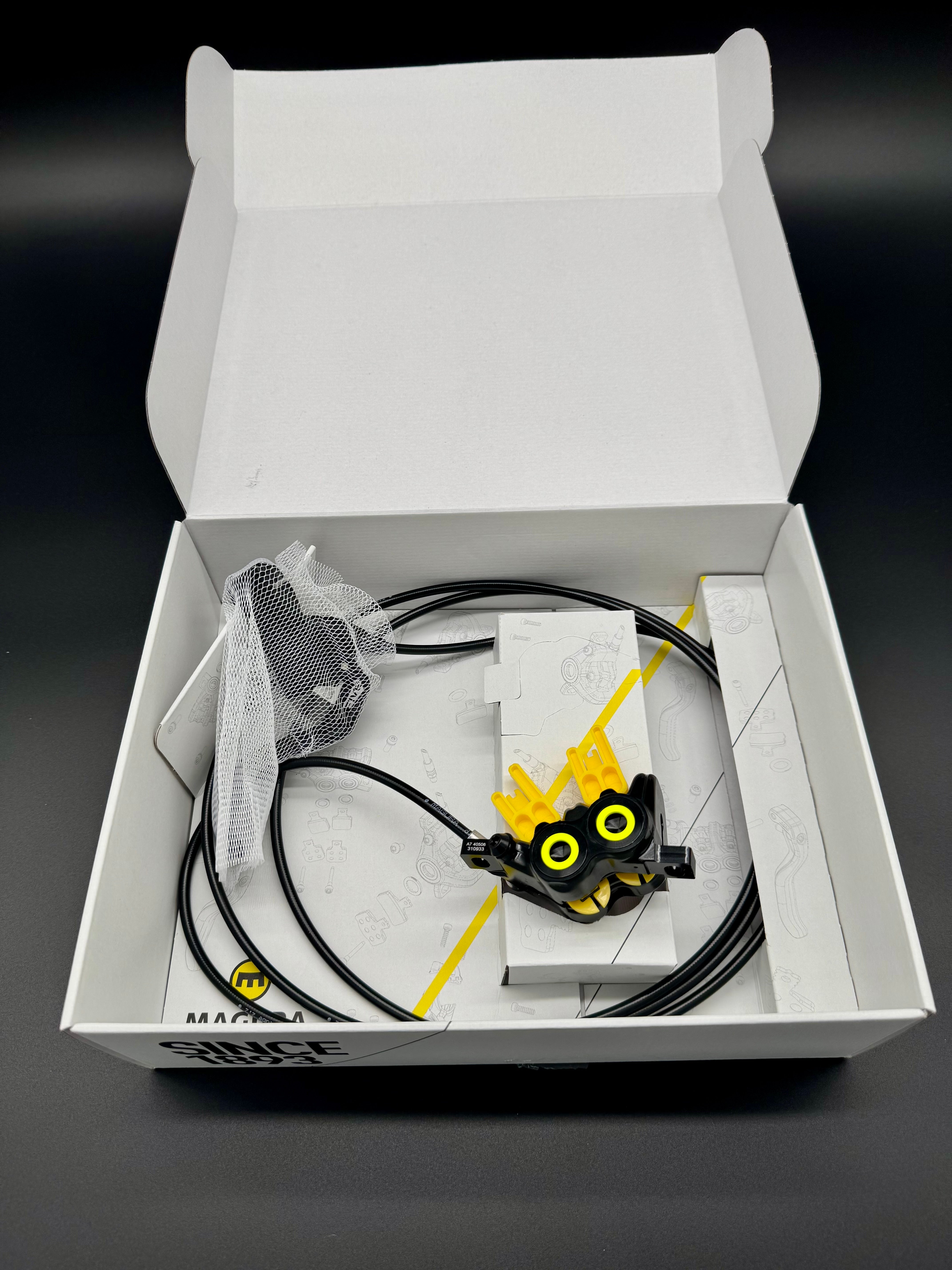

This is for one brake system (one lever/master cylinder, hose and caliper) that fits front or rear, please note that you maybe required to cut down the hose for a perfect fit depending upon the type of stem, wheels and bars on your bike.
*Please Note: Both the MT7 and MT5 PRO brake systems require the removal of the factory fitted Sur-ron brake switches.
*Please note: If you wish to make any changes to these brakes, you will also need to purchase the Magura Service Kit.
