Description

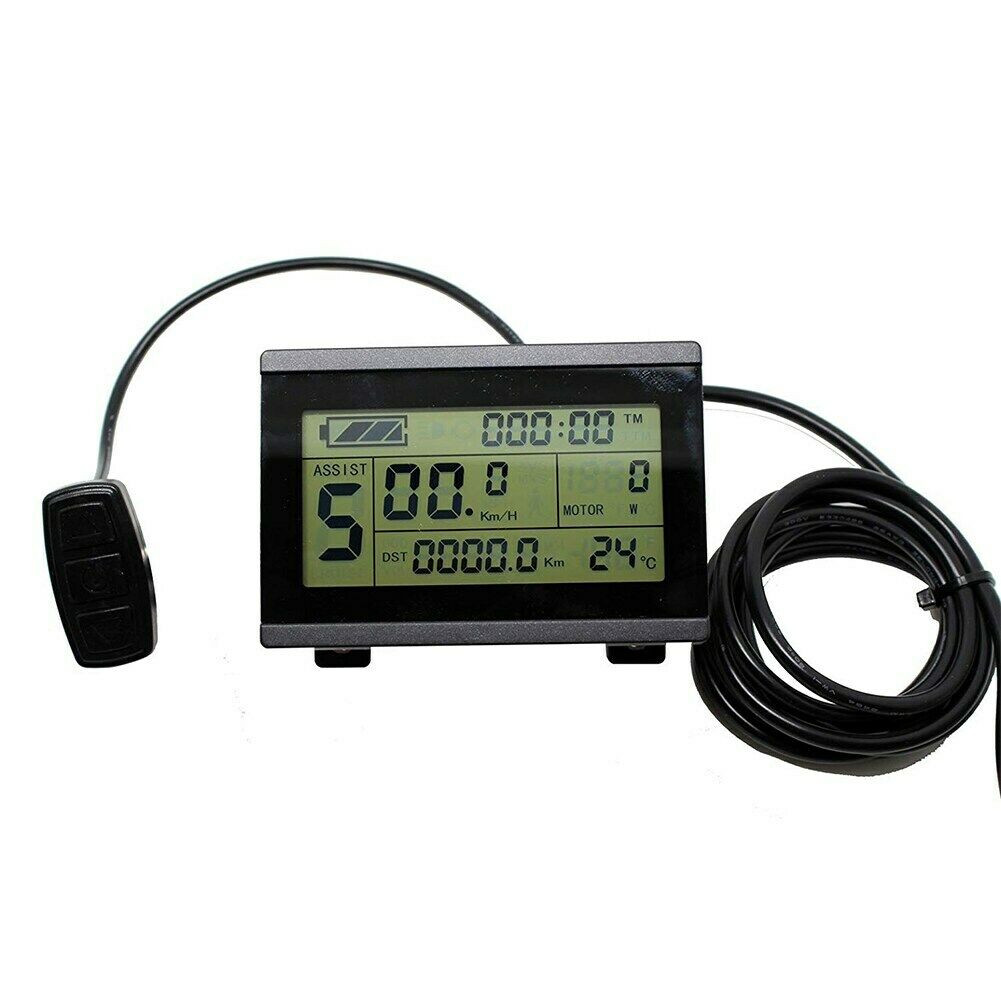

24V/36V/48V Ebike Intelligent LCD Control Panel LCD3 Display
Technical Data: Voltage: DC 24V/36V/48V
Size: 96x65x31mm
Weight: 0.25kg

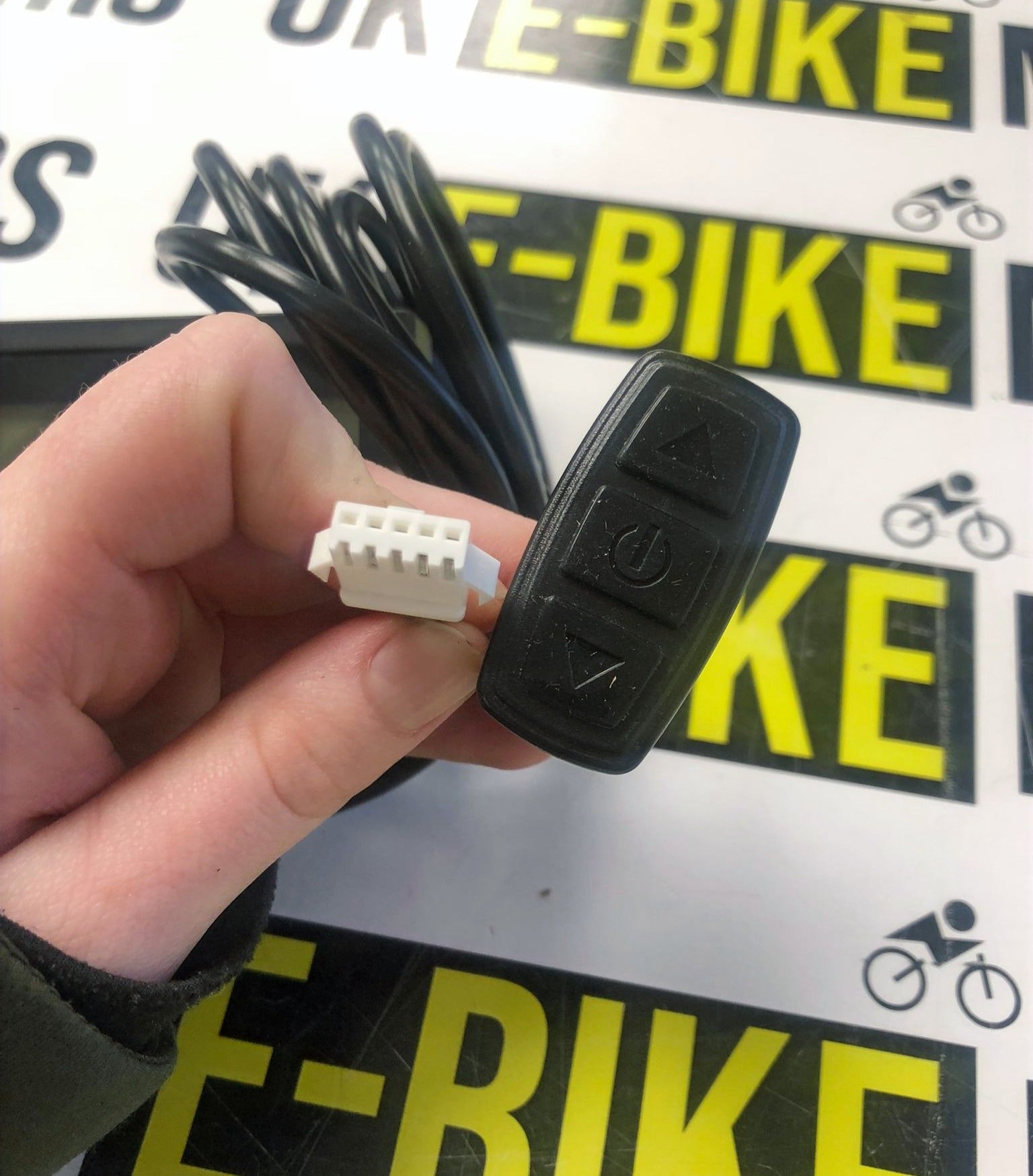

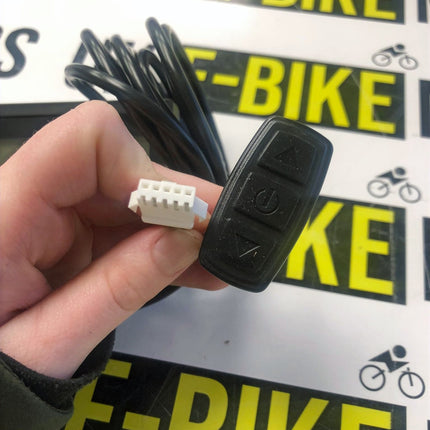

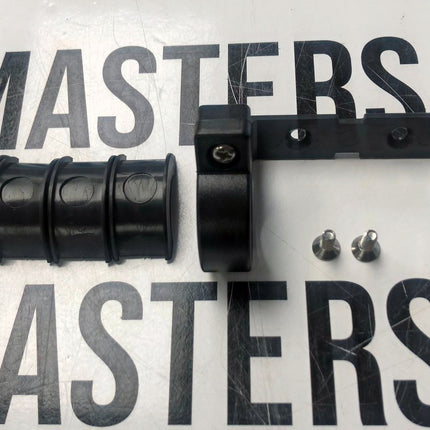

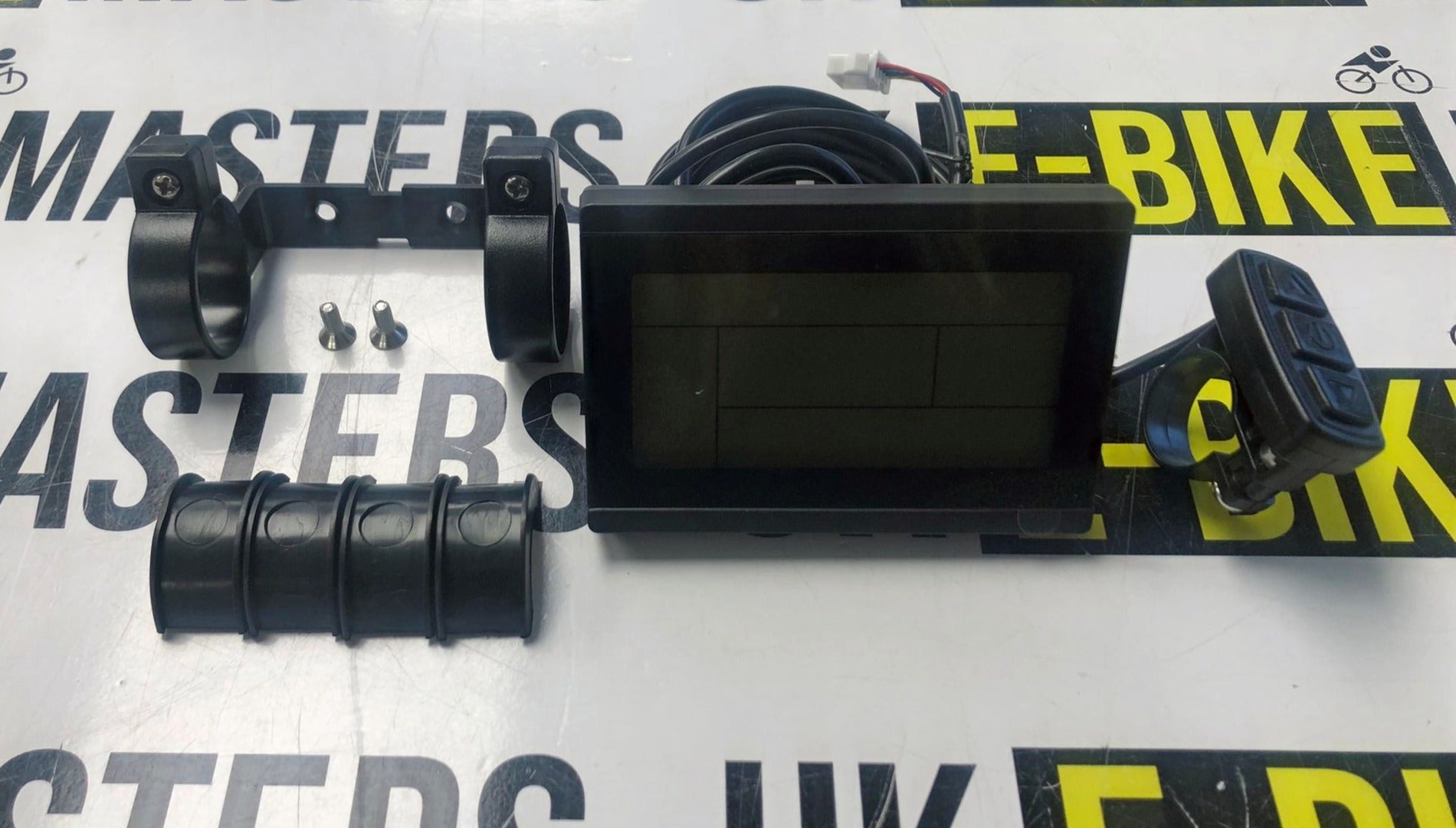

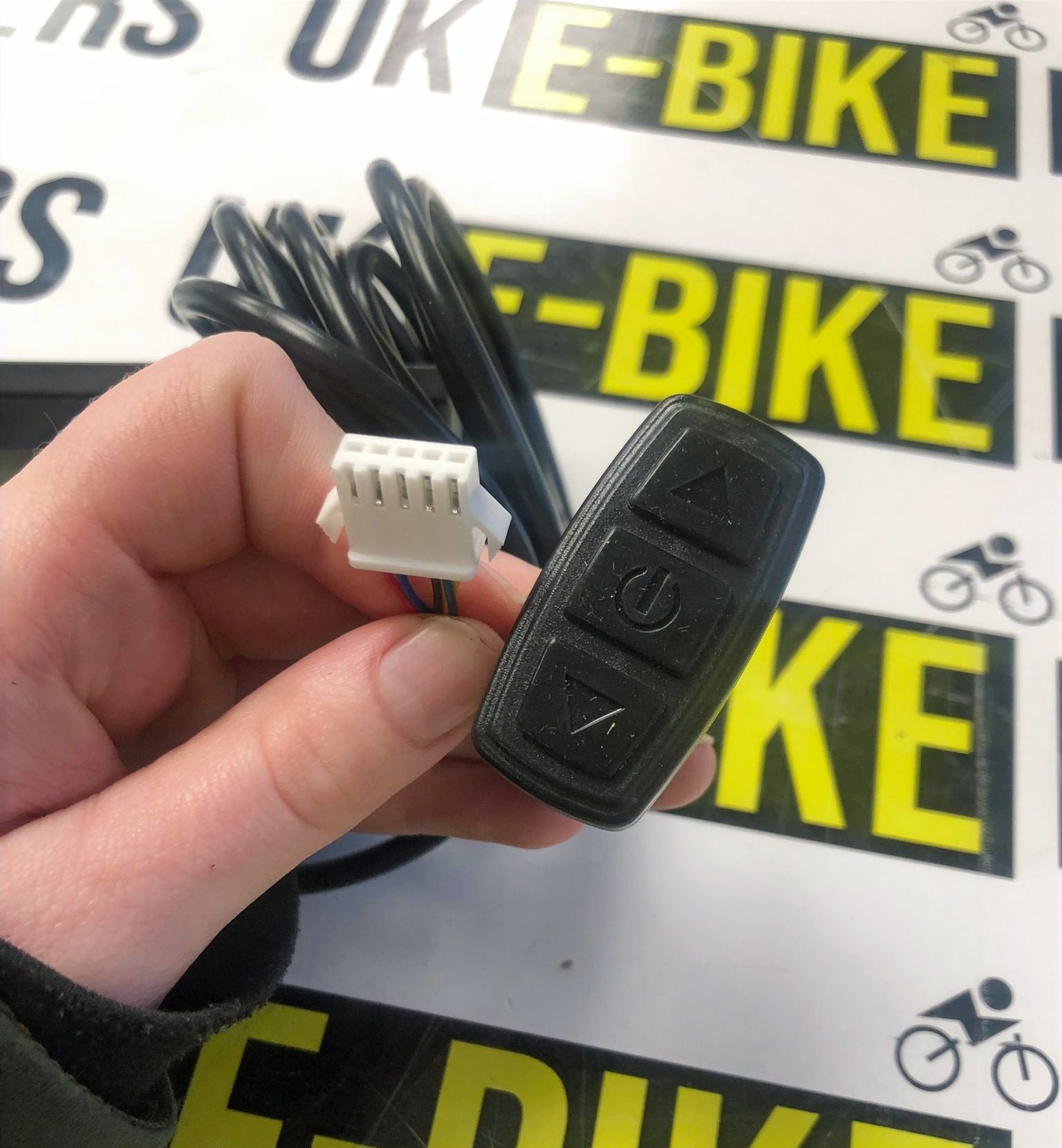

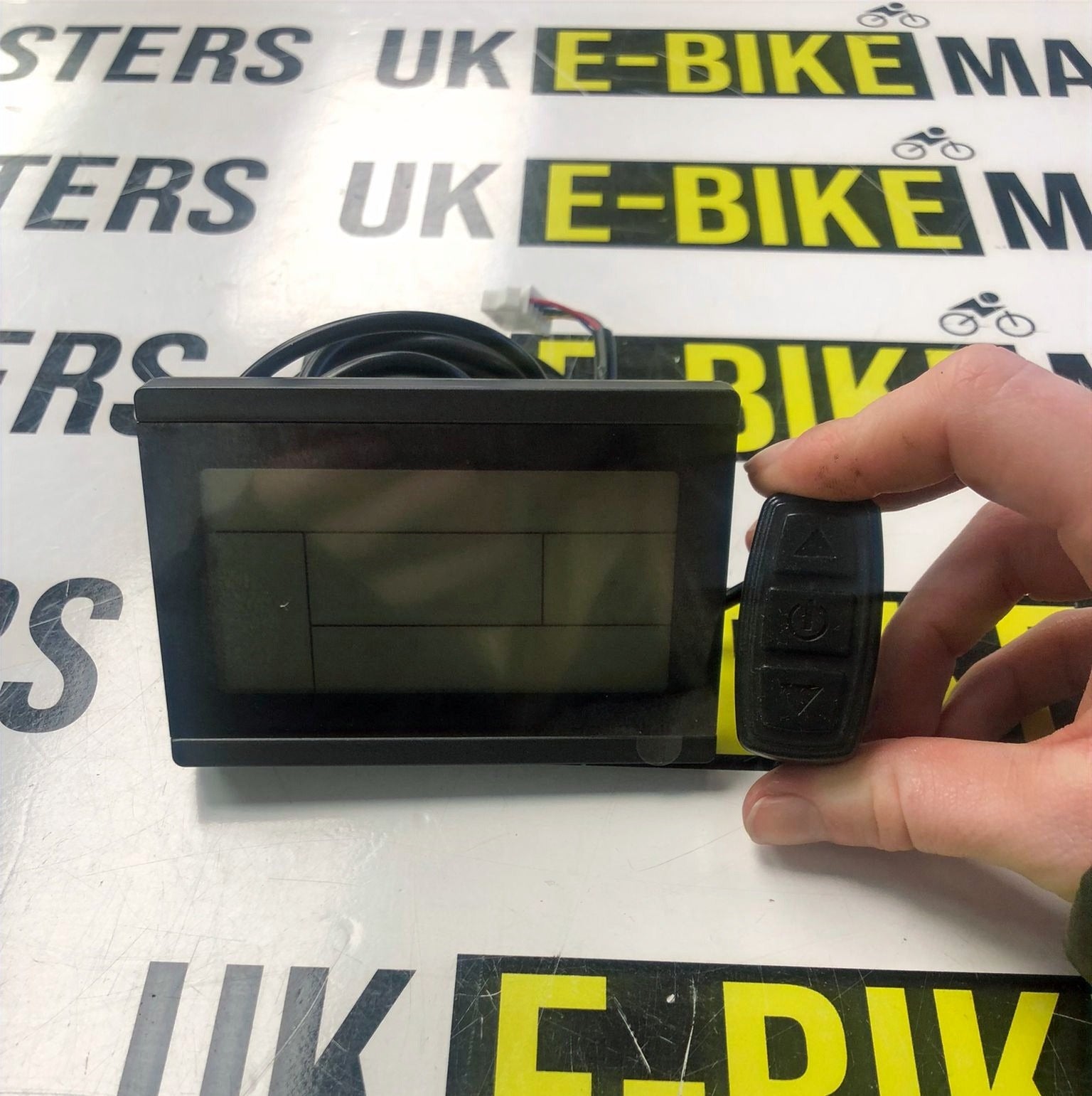

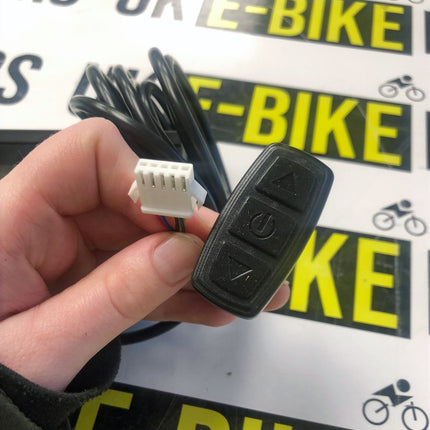

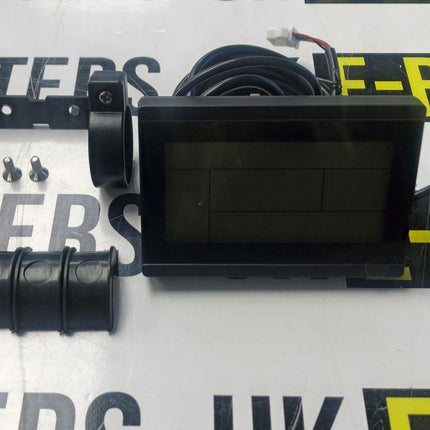

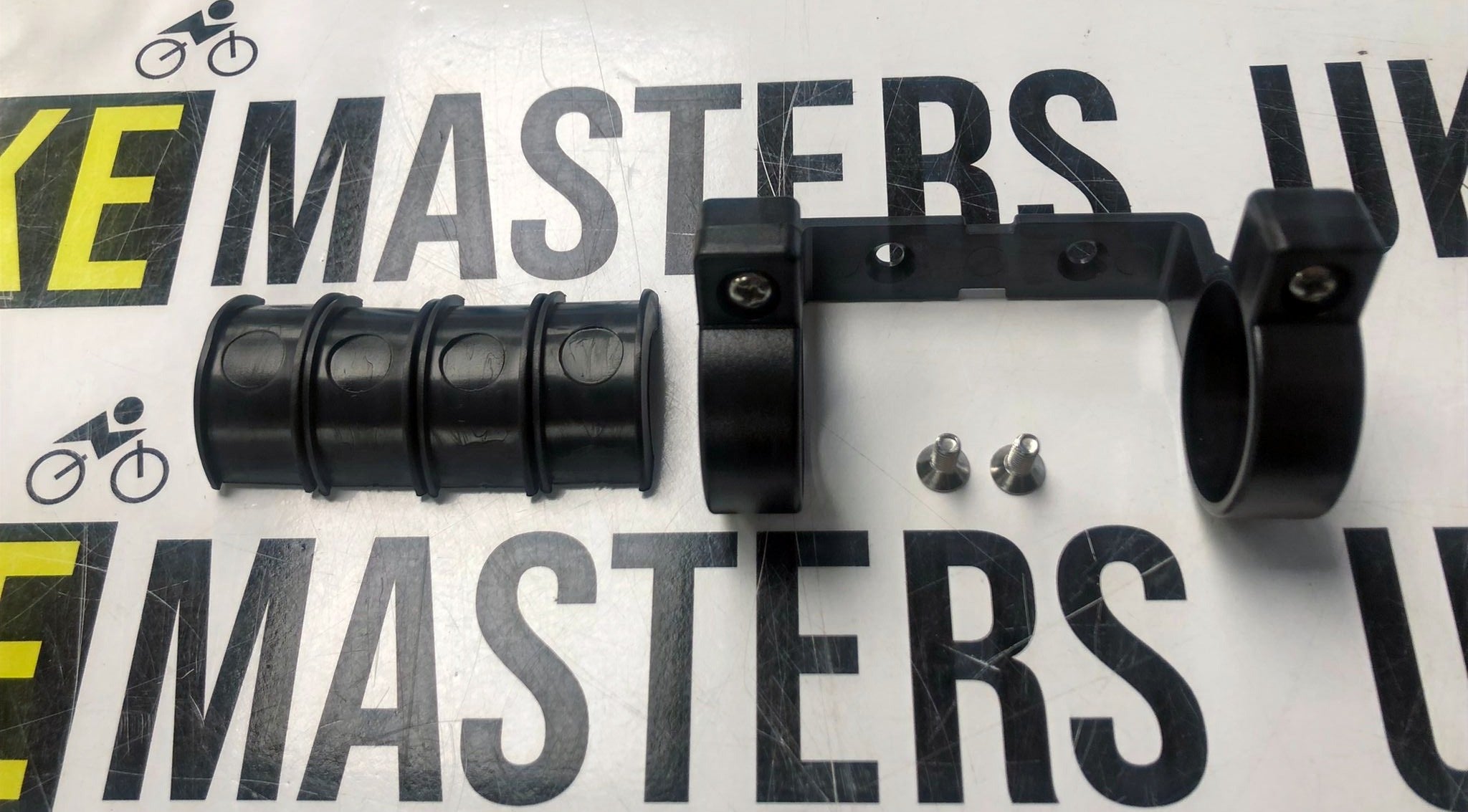

Parts include: LCD3 with Key Button, Bracket
Connector: Both SM-5A
Features:1. Data display: It shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;
2. Intelligent power: A true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;
3. Stalls setting: Multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;
4. Parameter setting: With a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment;
5. Data view: Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;
6. Vehicle boosting: With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
7. Cruise and constant speed: With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;
8. Night driving: With the functions of LCD backlighting display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;
9. Password setting: With three-bit of power-on password setting;
10. Automatically prompt: For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;
11. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;
12. Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;
13. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;
KT displays only work with KT controllers!
