Description

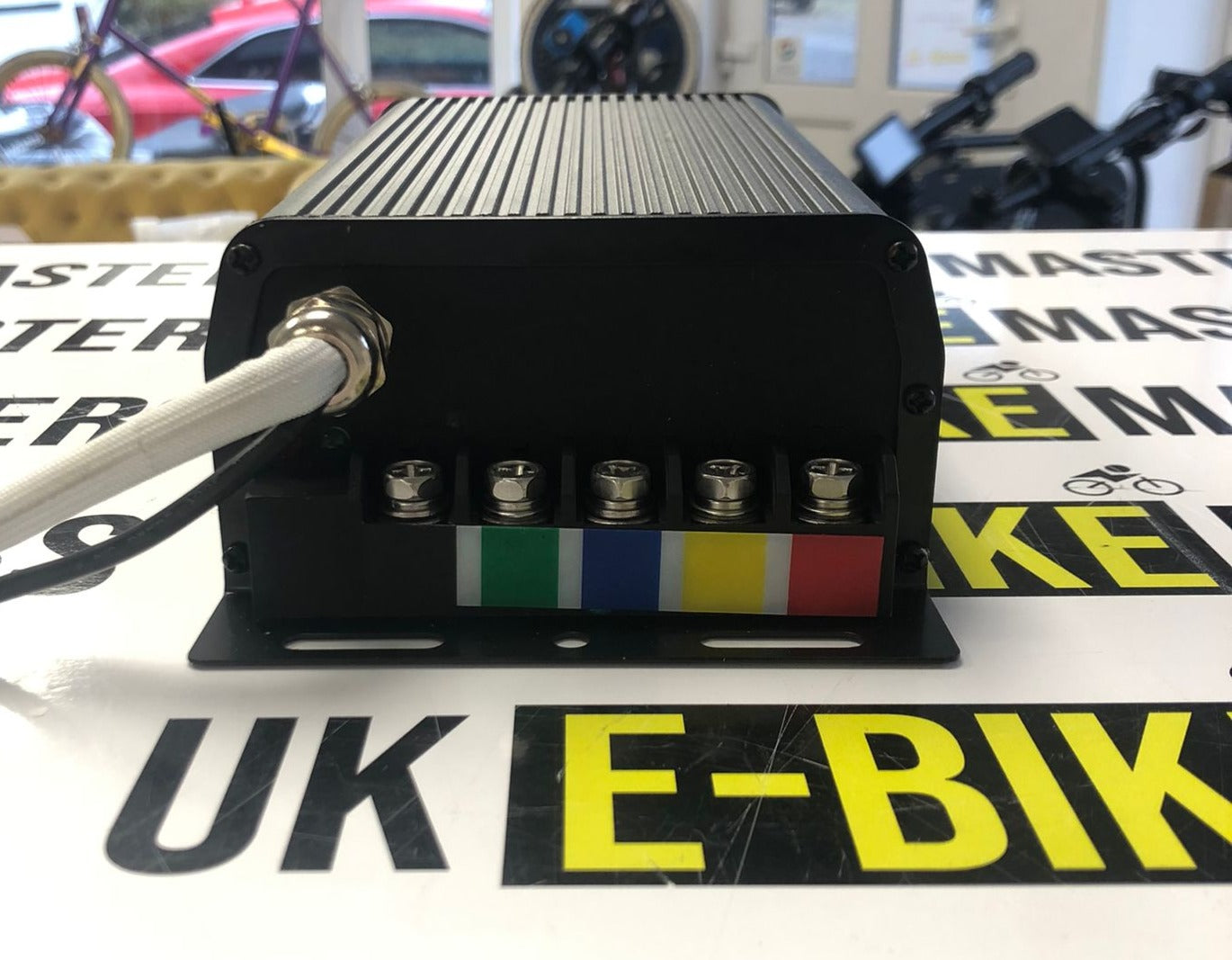

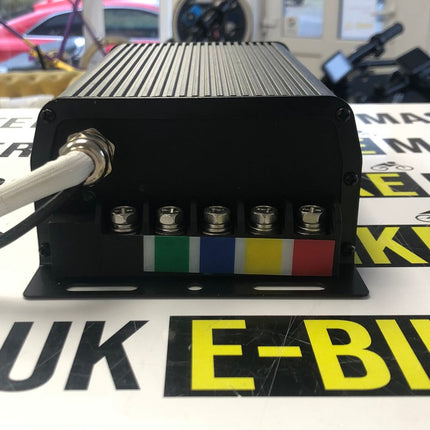

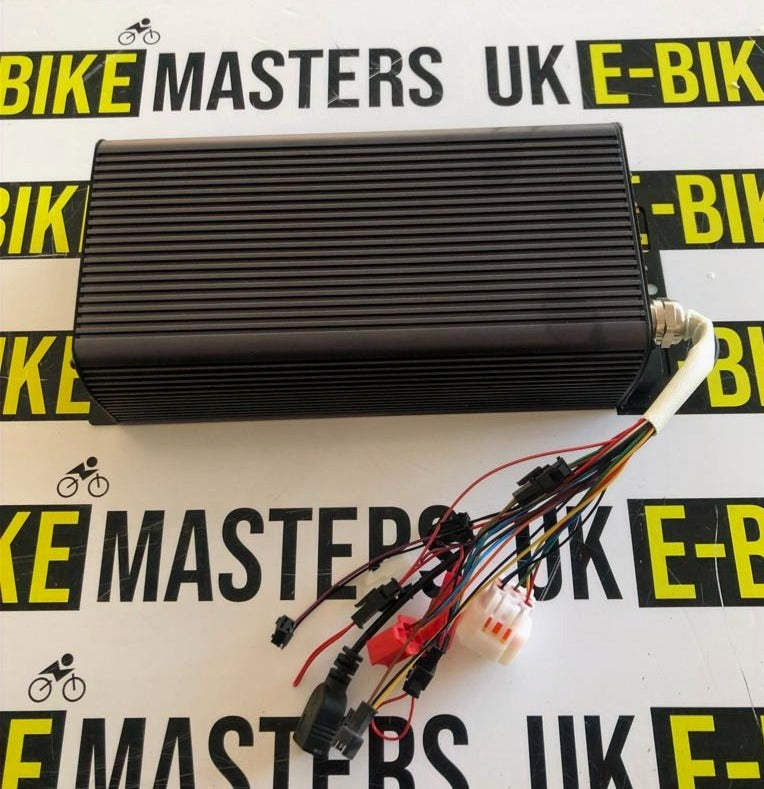

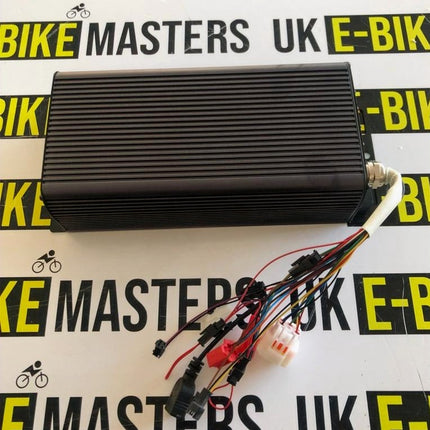

36V-72V 100A sabvoton controller
Description.
1. Universal power supply 36V-72V maximum 90V.
2. 100A DC current 250A phase current.
3. Rated power: 5000w.
4. Peak power: 7200w.
5. Low voltage protection.
6. Sine wave drive with field weakening.
7. LCD and alarm compatible.
8. Rotor Position Detecting Method: Hall sensor.
9. Mobile phone App or computer software can communicate with the controller to modify parameter.
10. Size:L:276 W:120 D:62mm*
11. Controller Net Weight: 1.95kg*
12. Waterproof Grade: IP65.

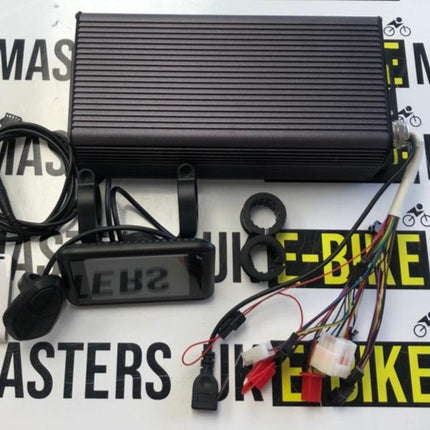

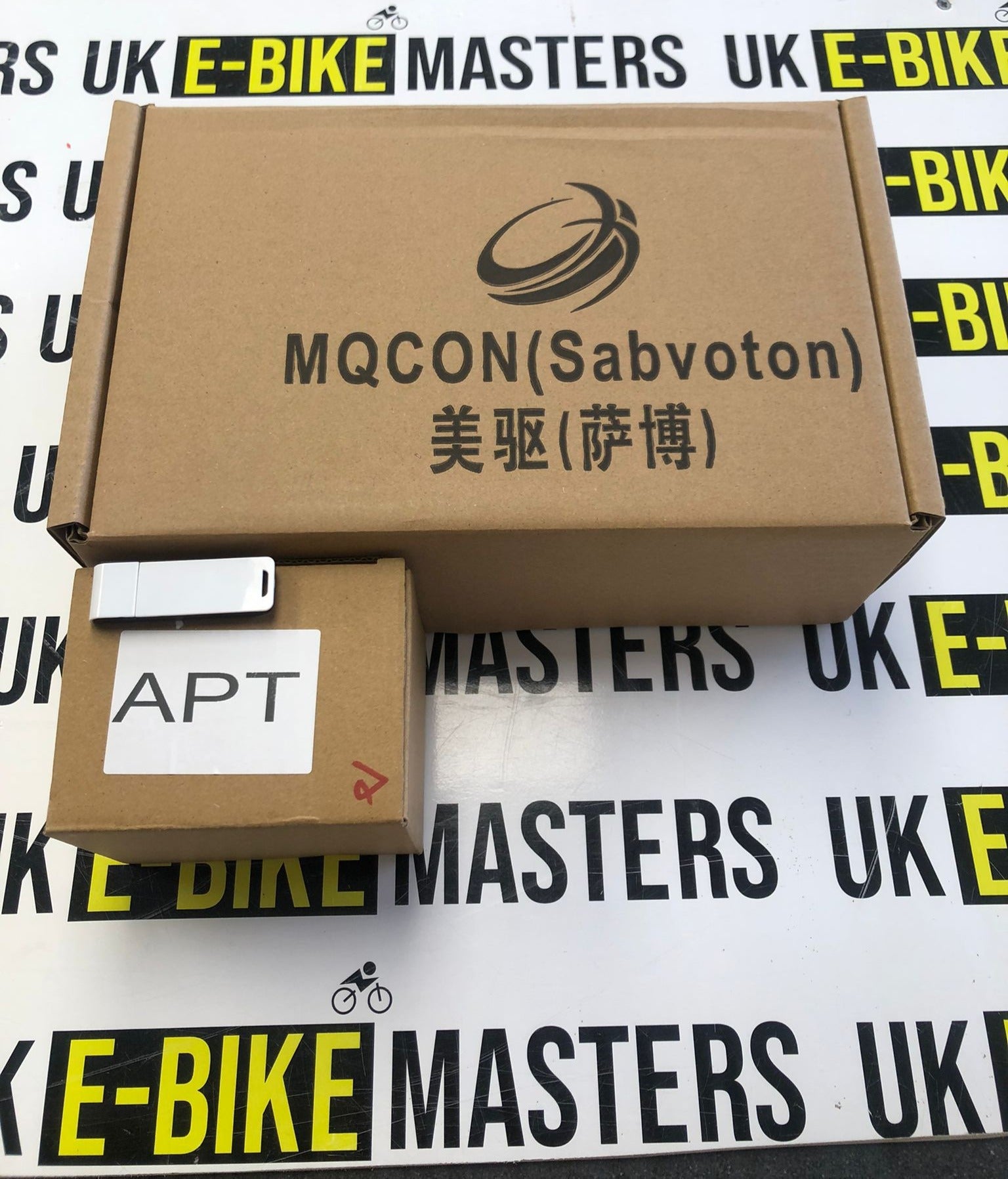

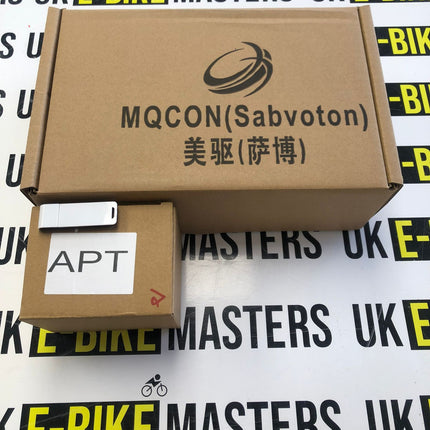

Package includes.
1 x sabvoton 100A controller.

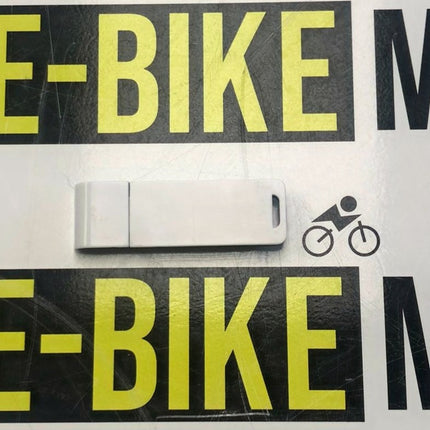

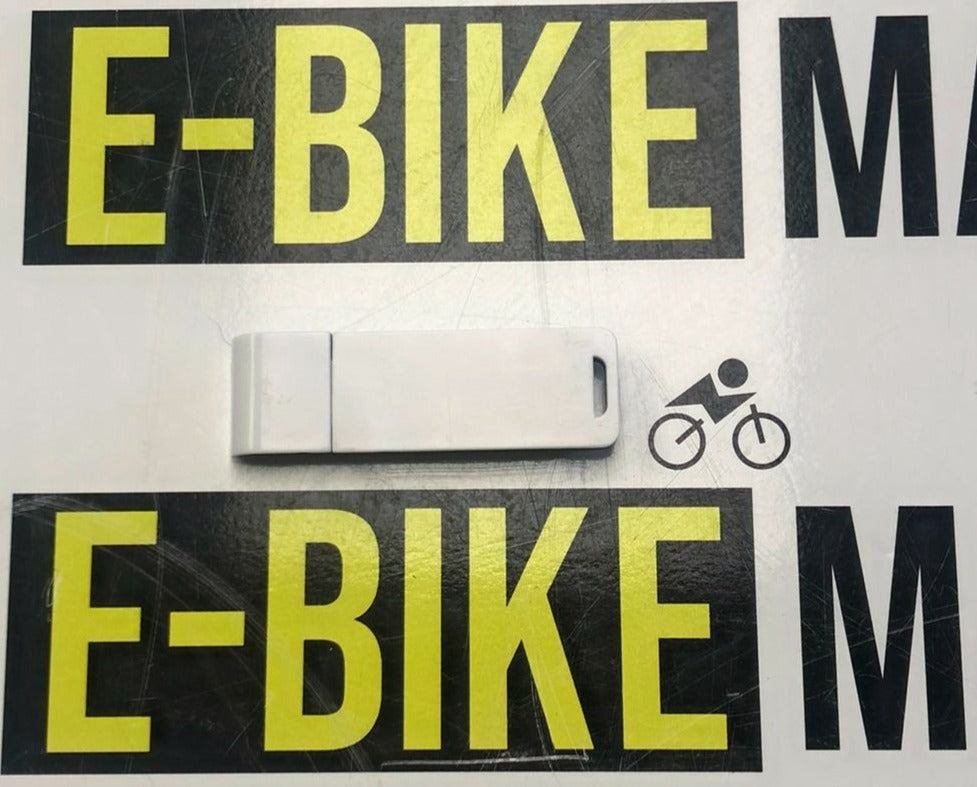

1 x usb dongle to program via Bluetooth with MQCON app

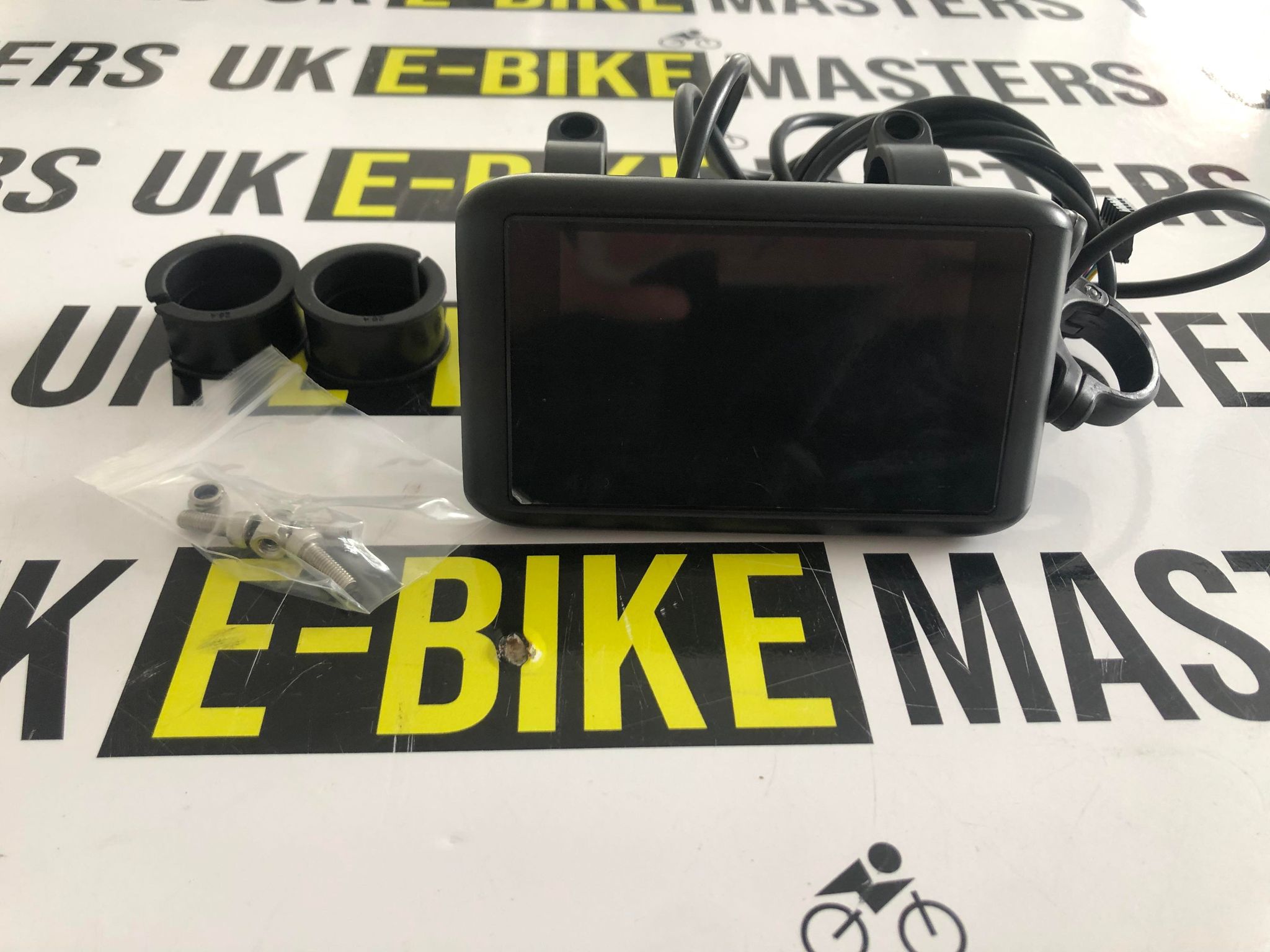

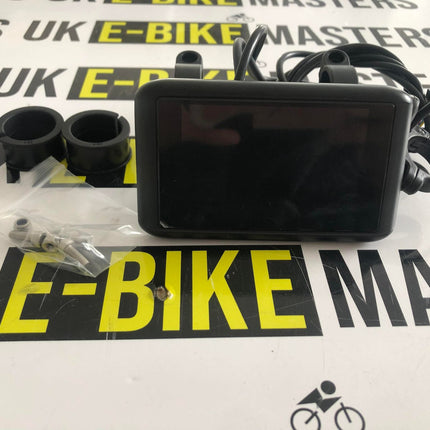

1 x UKC1 LCD
