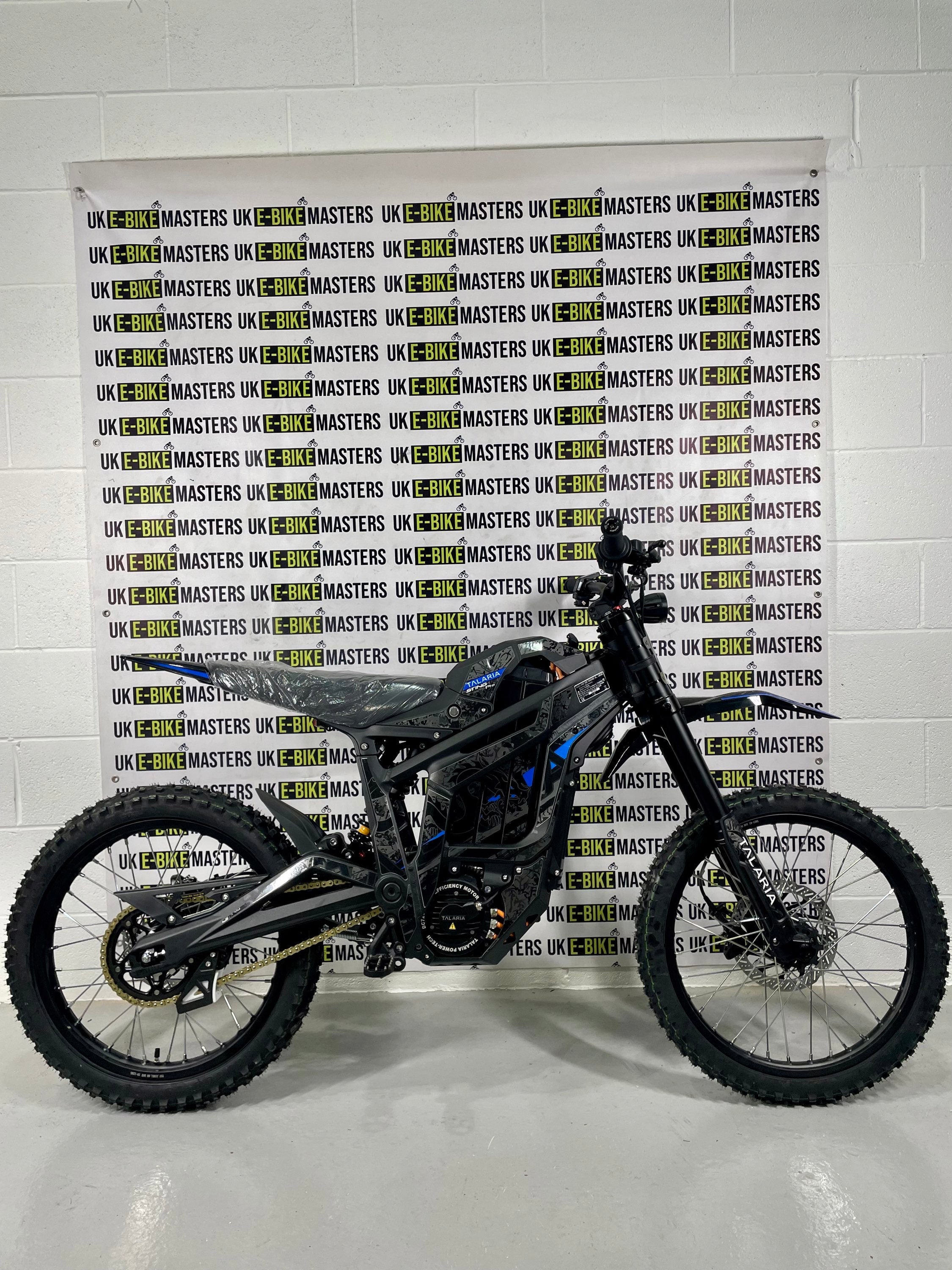

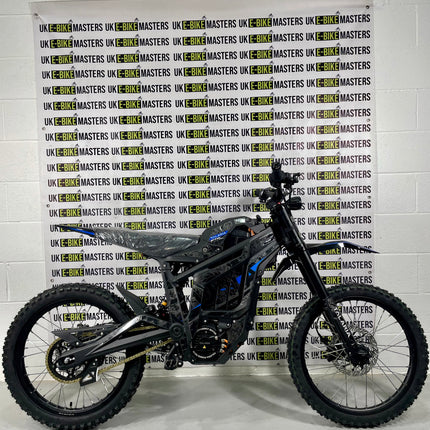

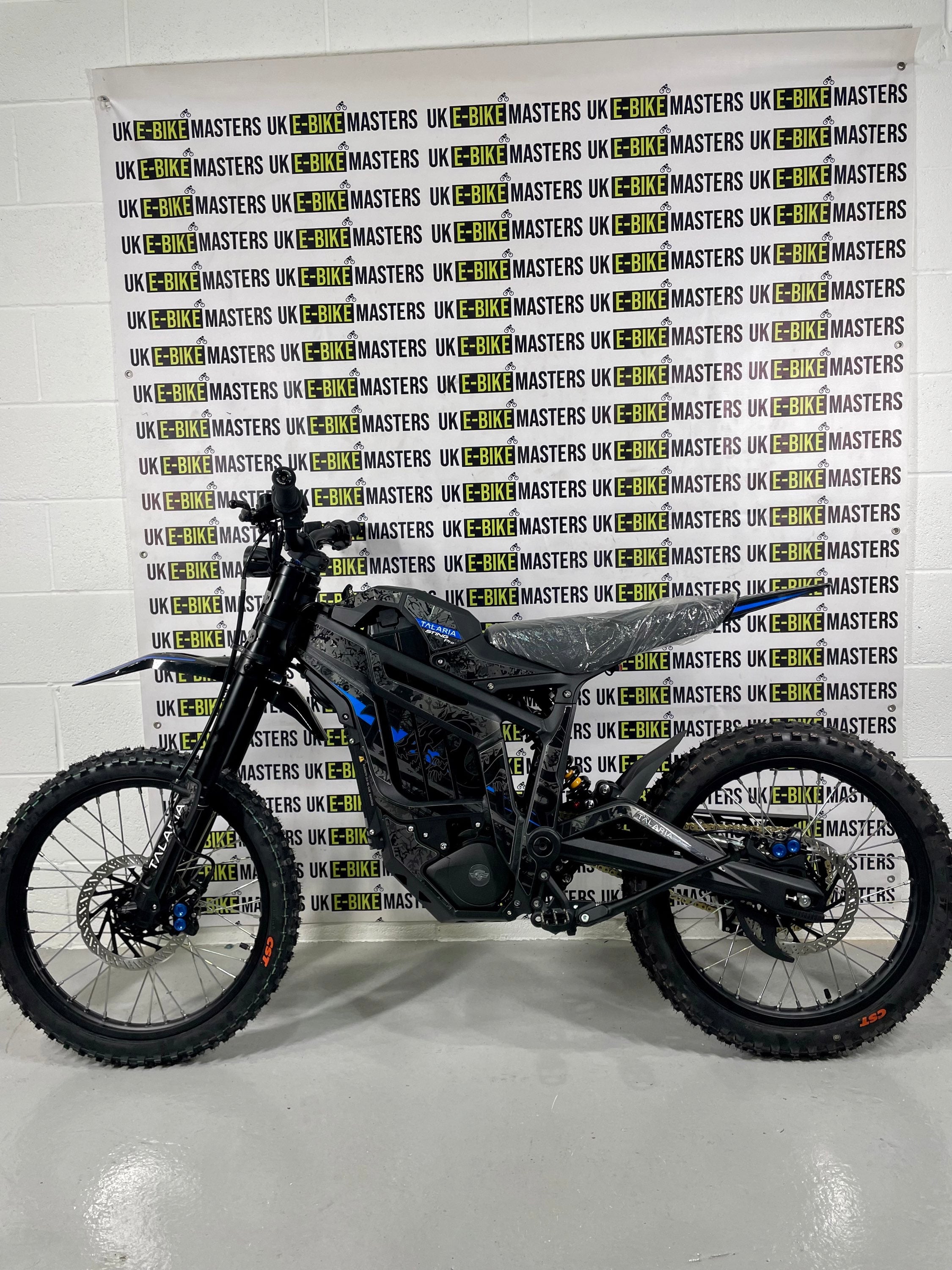

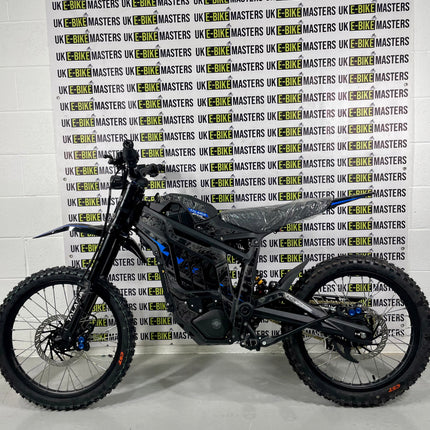

TALARIA STING MX5 PRO
Other notable features of the Talaria Sting MX5 Pro include powerful moto-spec brakes, three riding modes (including a high-performance “hyper” mode), four levels of regenerative braking, a color TFT display, and much more. A powerful IPM motor and sophisticated gearbox provide immediate torque and quiet operation, which are features of the Talaria line.
With exceptional high-spec features and an affordable MSRP, the Talaria Sting MX5 Pro is the solution for riders seeking the pinnacle of electric lightweight off-road performance. The MX5 Pro has some similarities with the E Ride Pro SS.
KEY FEATURES
72V 40Ah battery with Samsung 50S cells (2,880 WH)

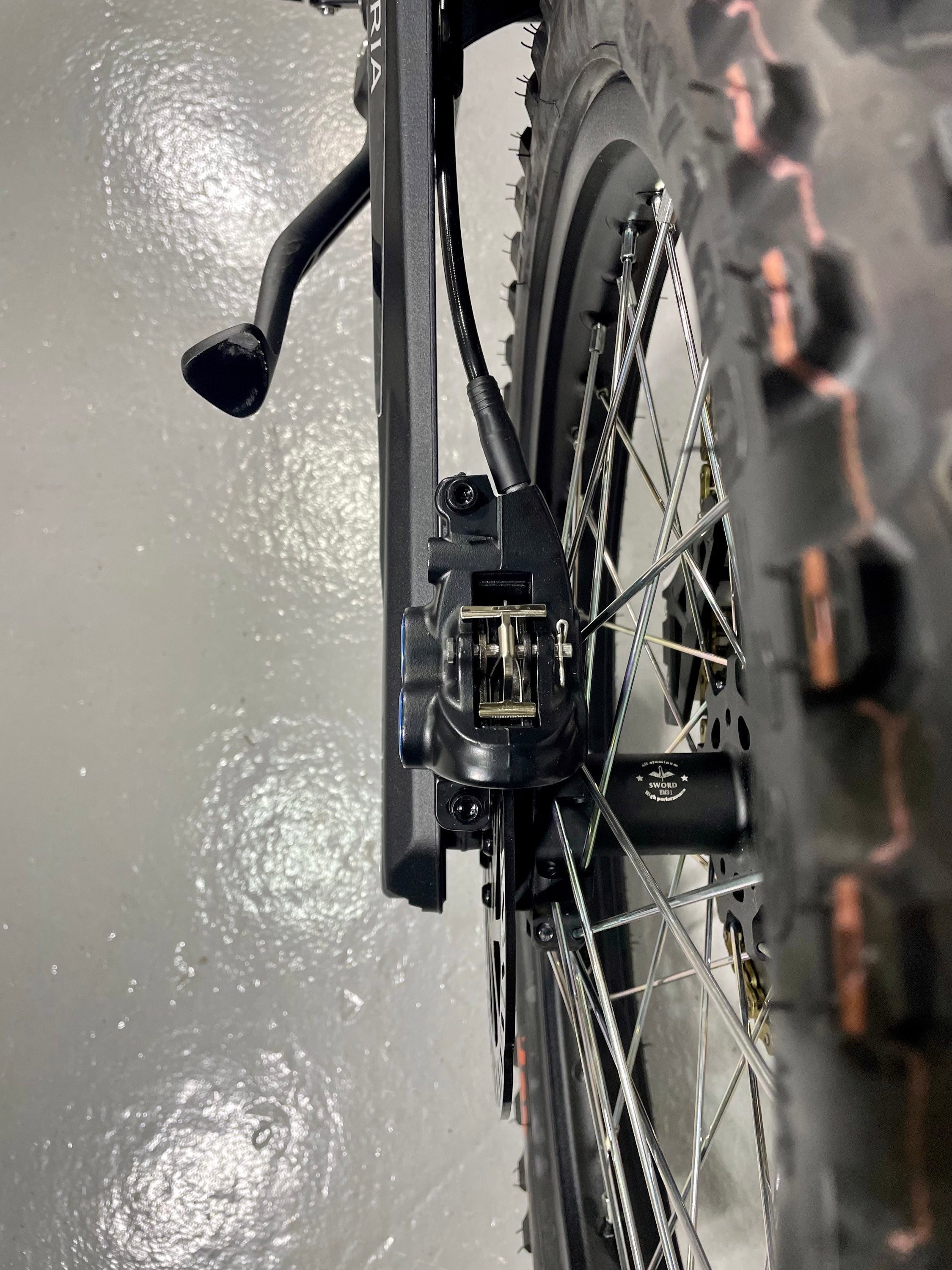

Improved braking power (220x3mm disc brakes, larger calipers & DOT redesigned master cylinders)
Adjustable air & double spring suspension tuned for optimal off-road performance (improved over MX4)
3 riding modes including hyper performance mode (unique to the MX5)

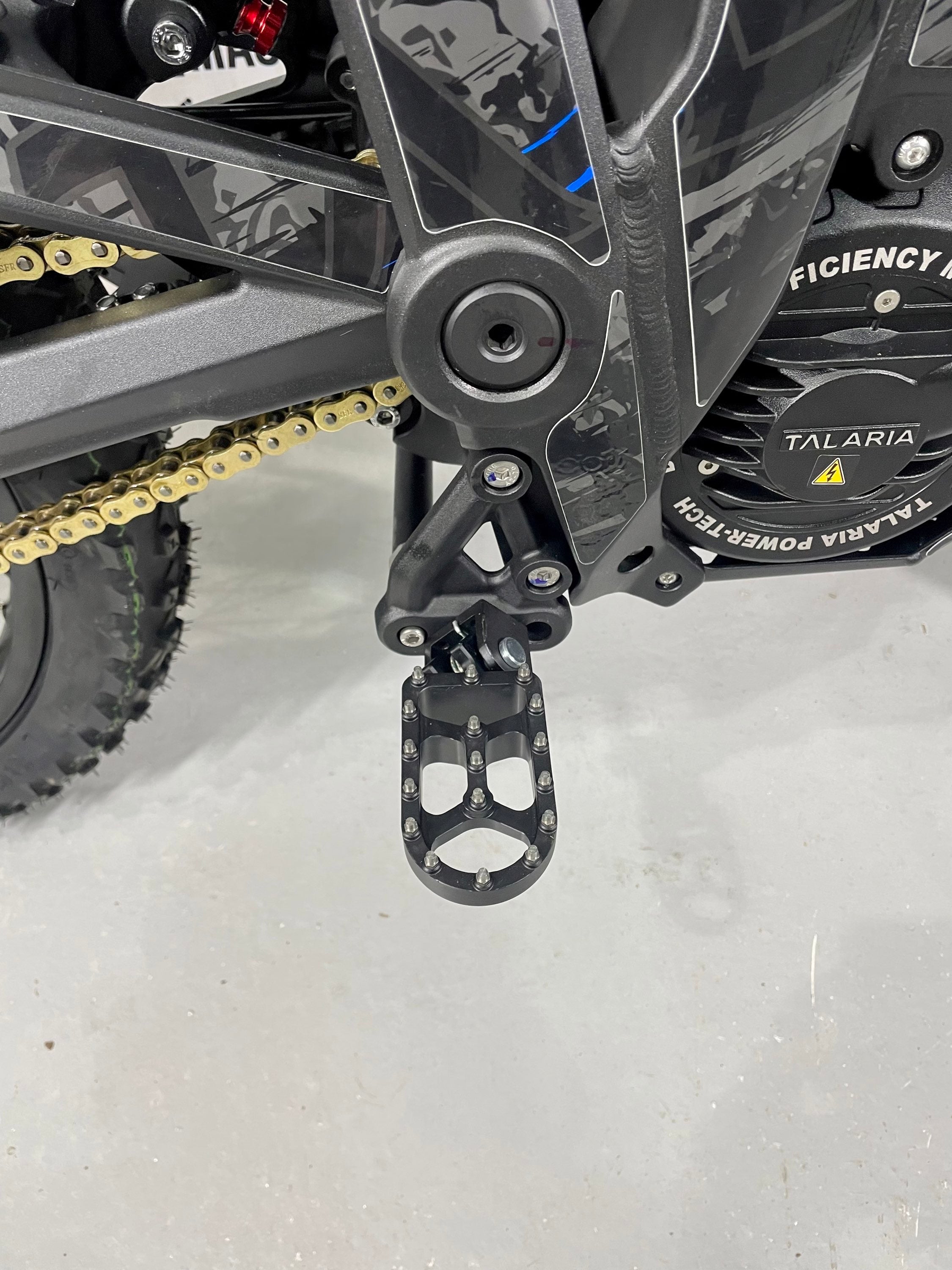

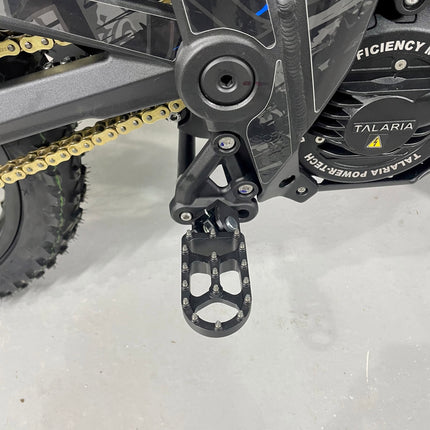

CNC machined black footpegs

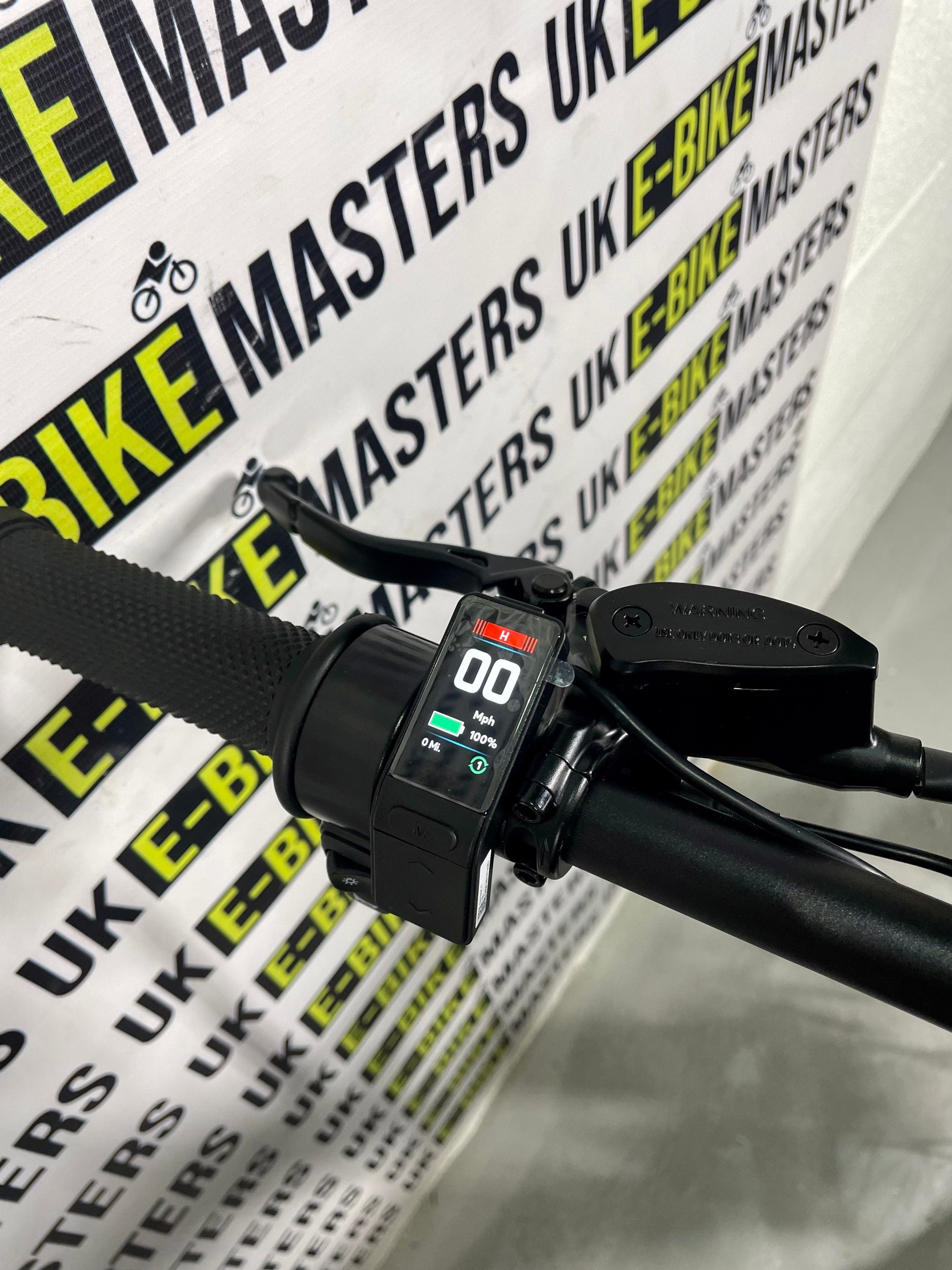

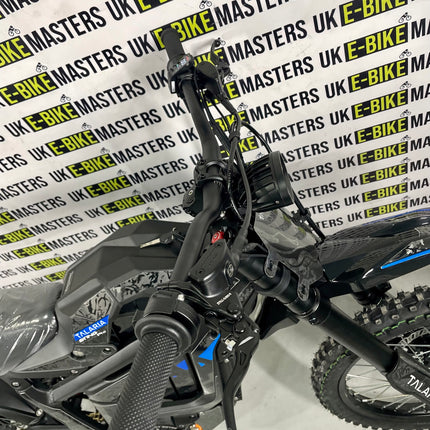

Colour TFT Display

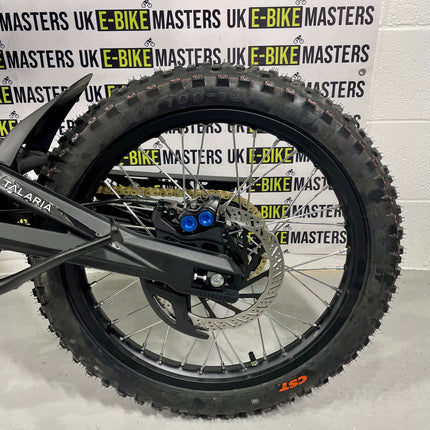

Straight-pull CNC machined wheel hubs with reinforced spokes

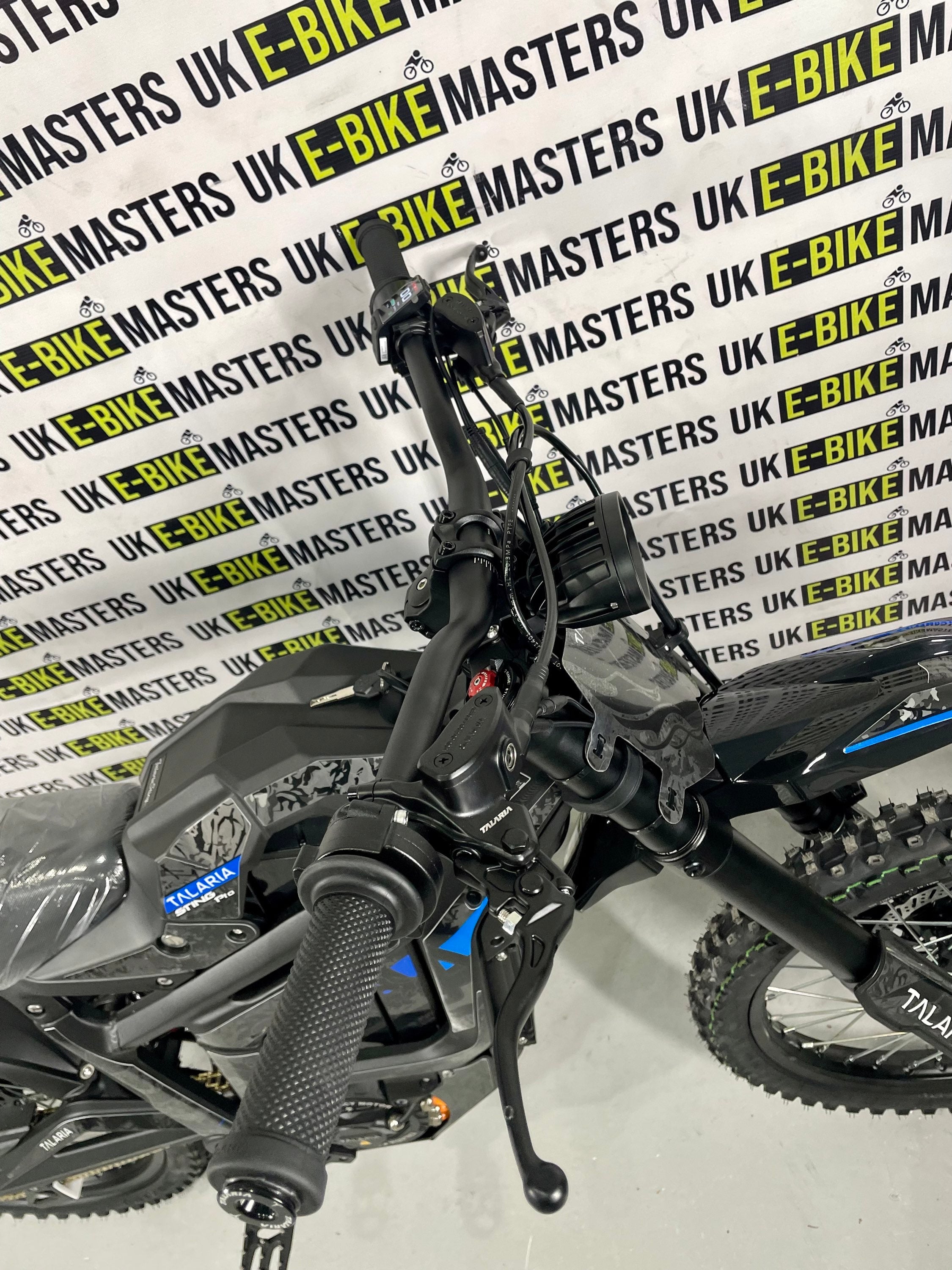

Regenerative braking (including regenerative brake lever)

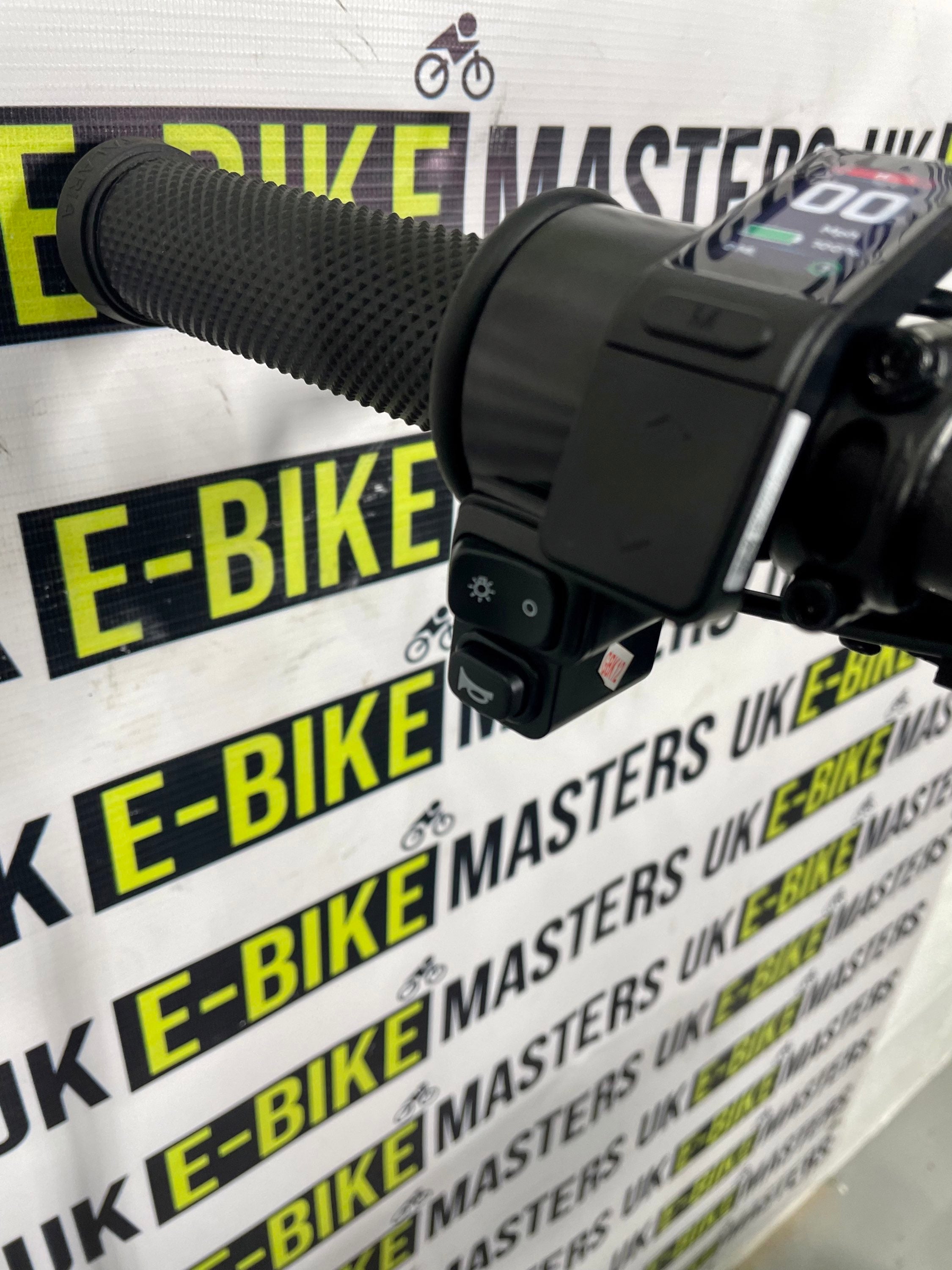

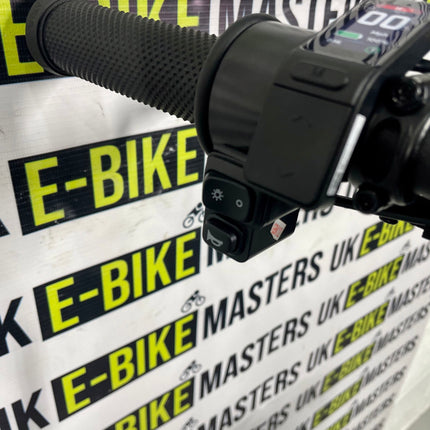

Headlight switch
Internal reinforced gearbox for quiet, reliable power (no more worn out or snapped belts)
VEHICLE
Chassis Material: 6061 T4 & T6 aluminium alloy
Process Method: Forged under 6,000 tonnes of pressure
Surface Method: Anodizing
Headlight: LED

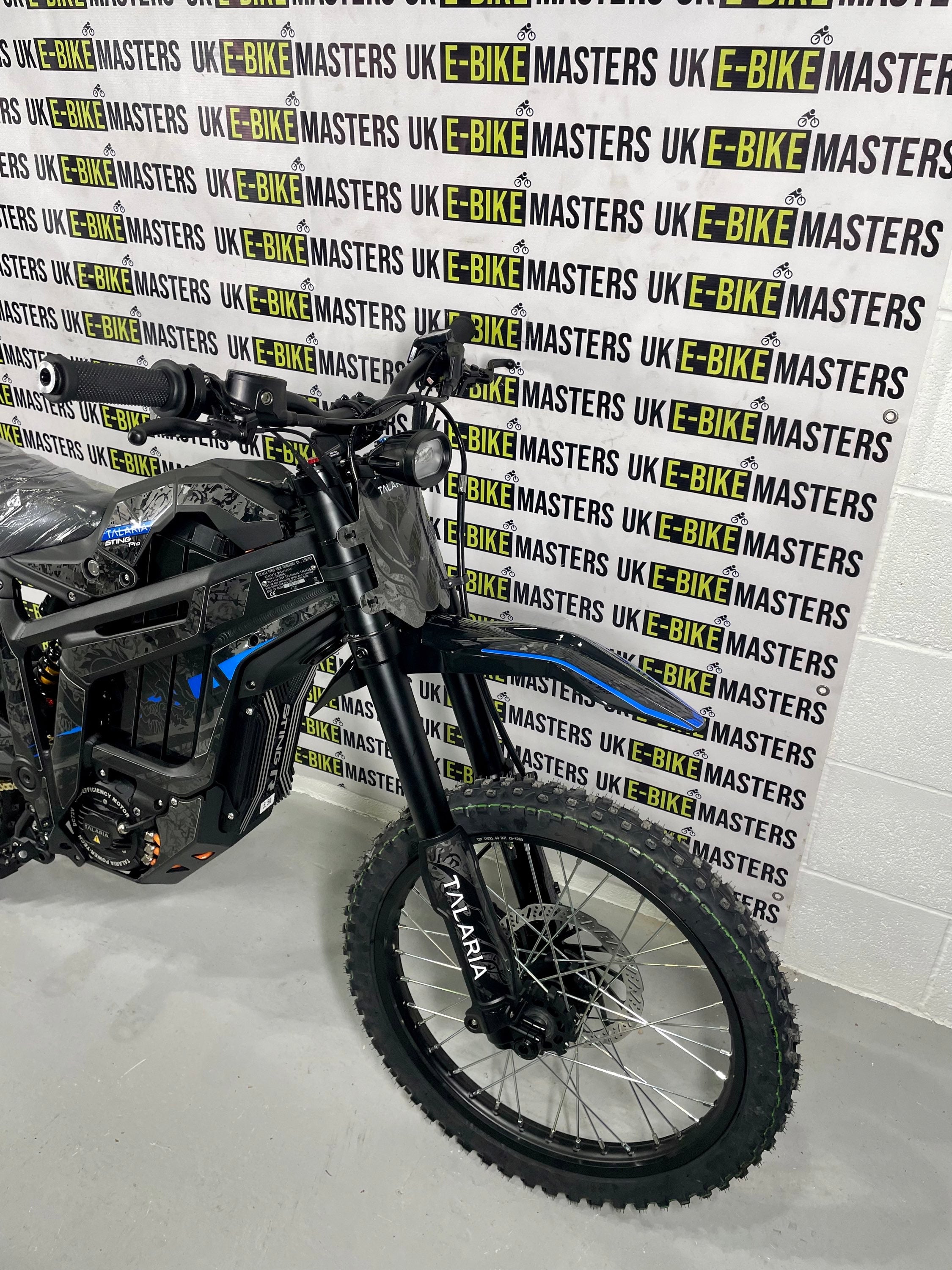

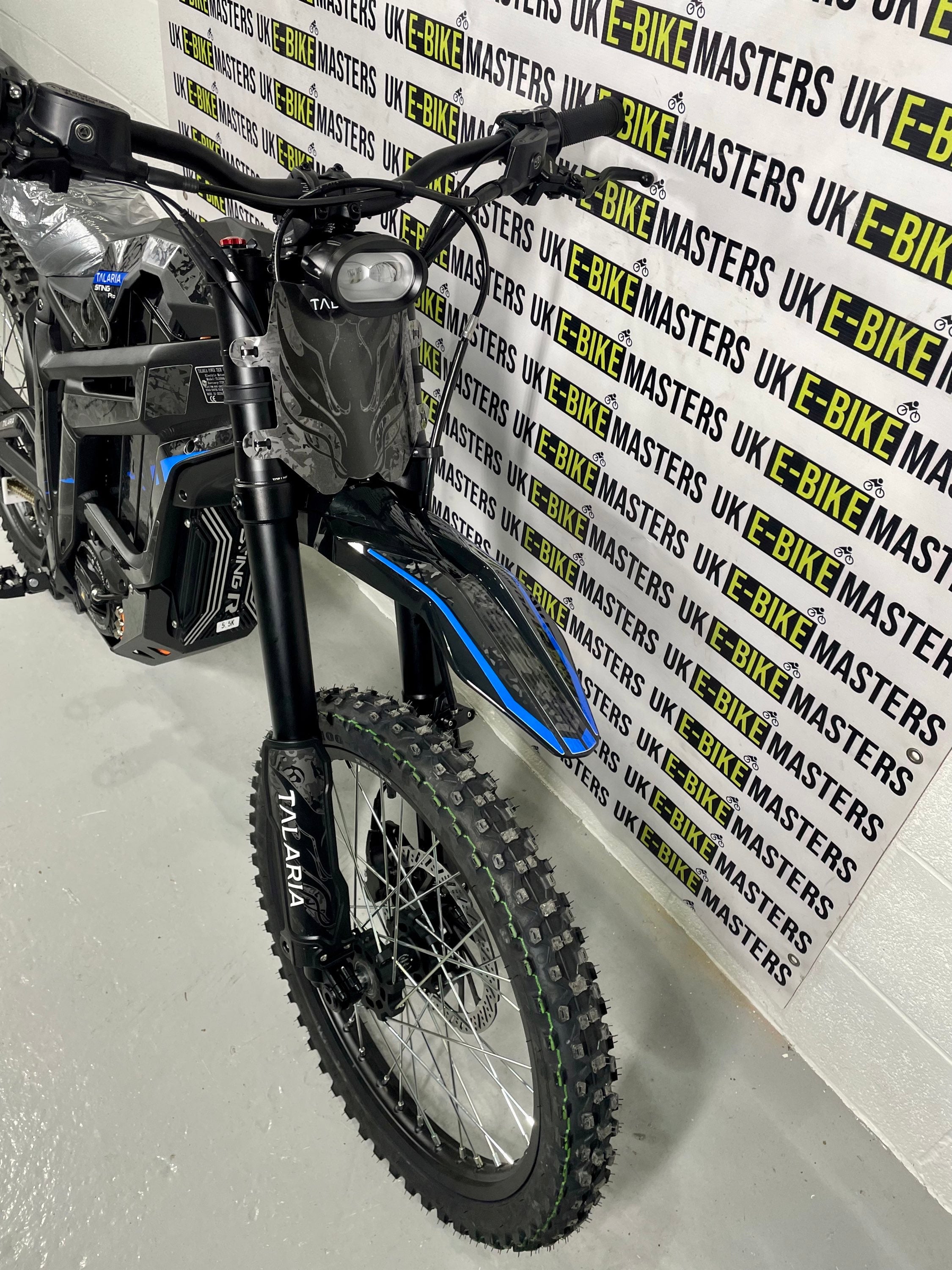

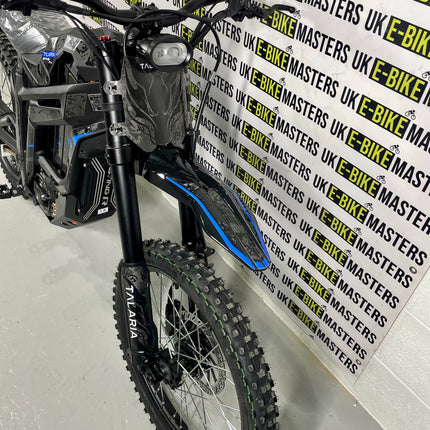

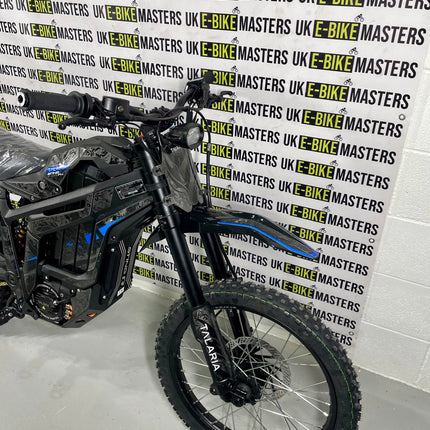

Front Fork: Adjustable air + dual spring (220mm travel)

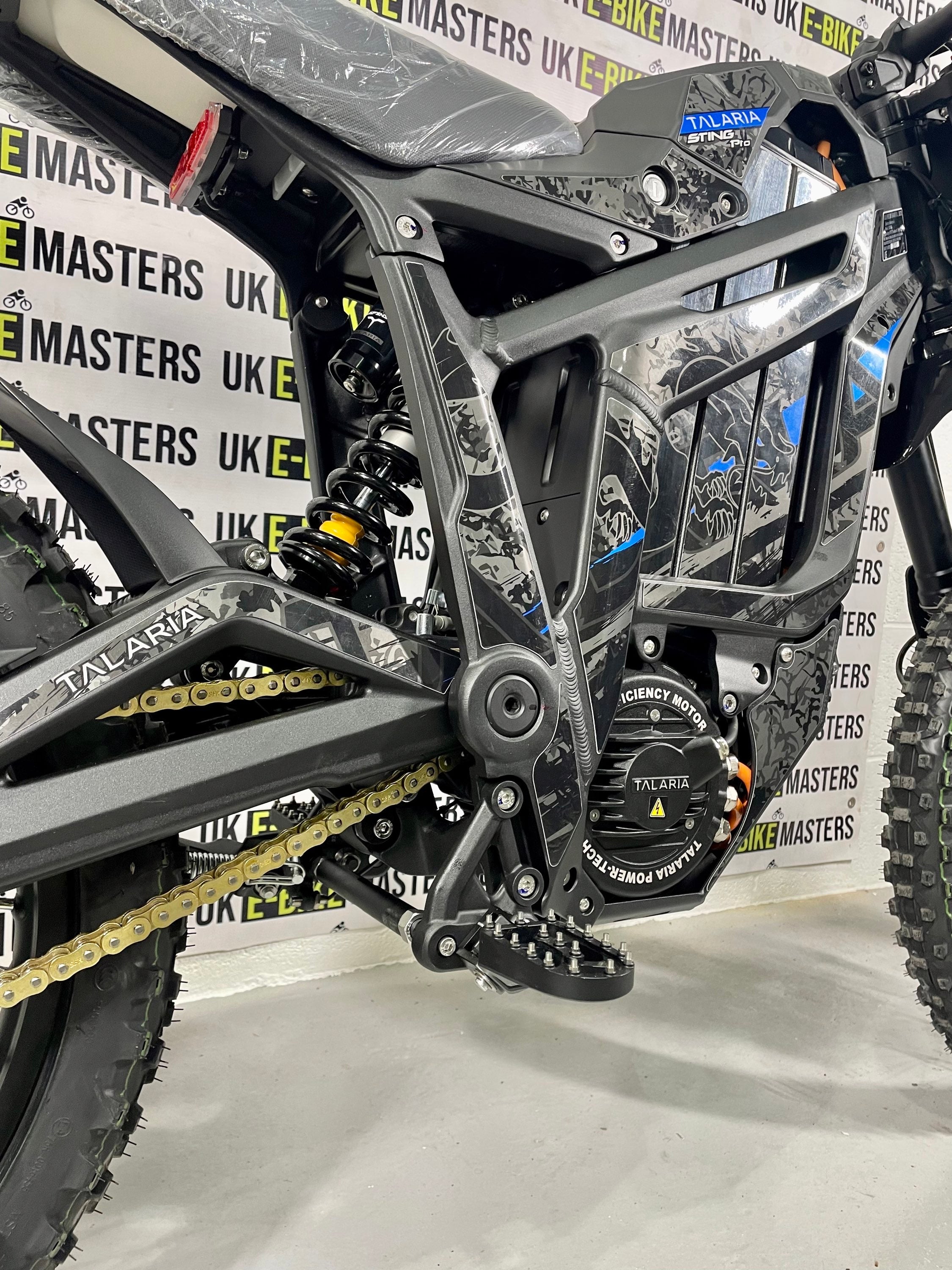

Rear Shock: Adjustable 85mm travel with linkage
Wheel Size: 1.4×19 in. front / 1.6×19 in. rear
Tires: FR 70/100-19 / RR 80/100-19 off-road tires
Max Range: 100 km @ 25 km/h (62 miles @ 15 mph)
Net Weight: 76 kg (159 lbs) with battery
Vehicle Dimensions: 1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
Seat Height: 840mm (33.1 in)
Wheelbase: 1,250mm (49.2 in)
Handlebar Length: 760mm (29.9 in)
Ground Clearance: 300mm (11.8 in)
Max Climbing Angle: 45°
Max Recommanded Load: 100 kg (220 lbs)

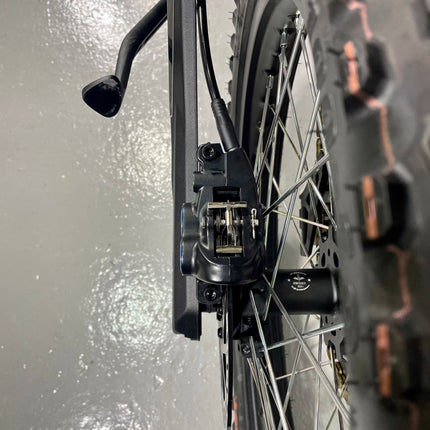

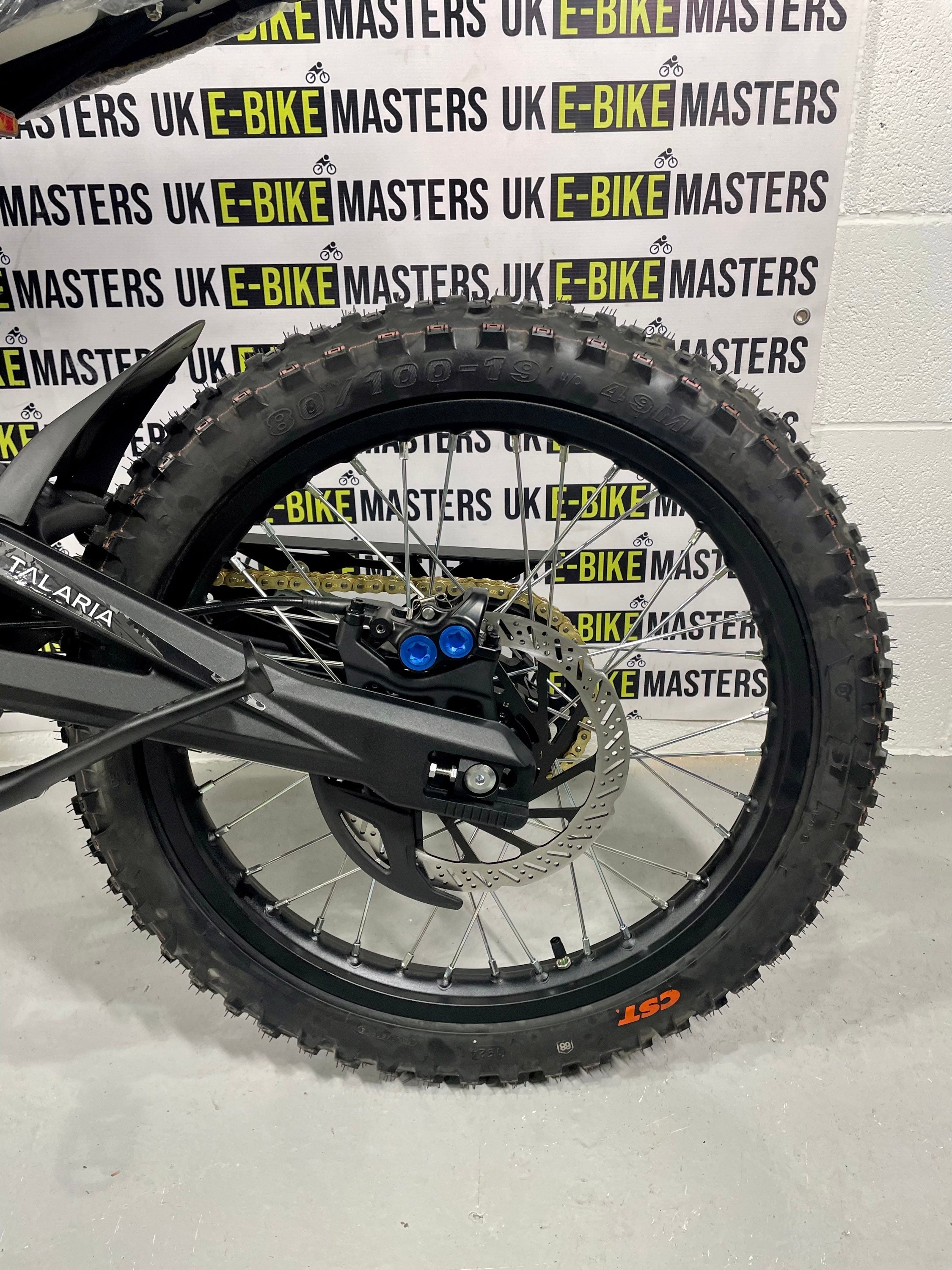

Brakes: Hydraulic FR/RR improved 4-pistons
Brake Disc: 220mm x 3mm
POWER
Nominal Voltage: 72V (DC)
Maximum Speed: Factory limited to 32 km/h (20 mph)
Torque: 500N.m (428 48T sprocket)
Rated Power: 5.5 kw (Unrestricted)
Peak Power: 13.4 kw (Unrestricted)
Power Mode: Eco / Sport / Hyper
ELECTRONIC
Battery Pack: 72V 40AH
Battery Cells: Samsung 50S

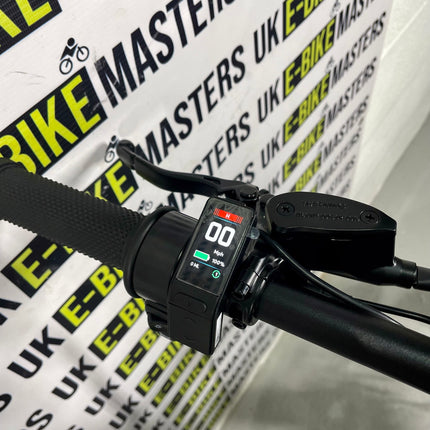

Display: TFT – Speed, battery level, voltage, odometer
Regenerative Braking: 4-level adjustment + regenerative brake lever
MOTOR

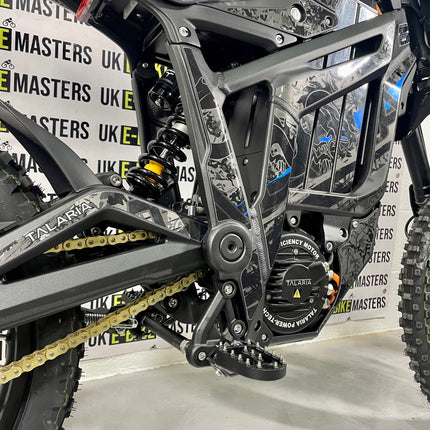

Motor type: DC IPM
Mounting Position: Mid-mounted
Motor Cooling: Air-cooled
TRANSMISSION
Primary Transmission: Gearbox

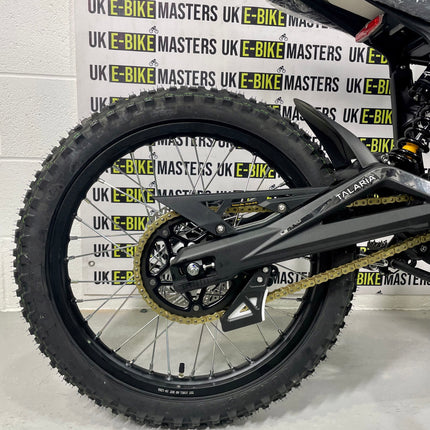

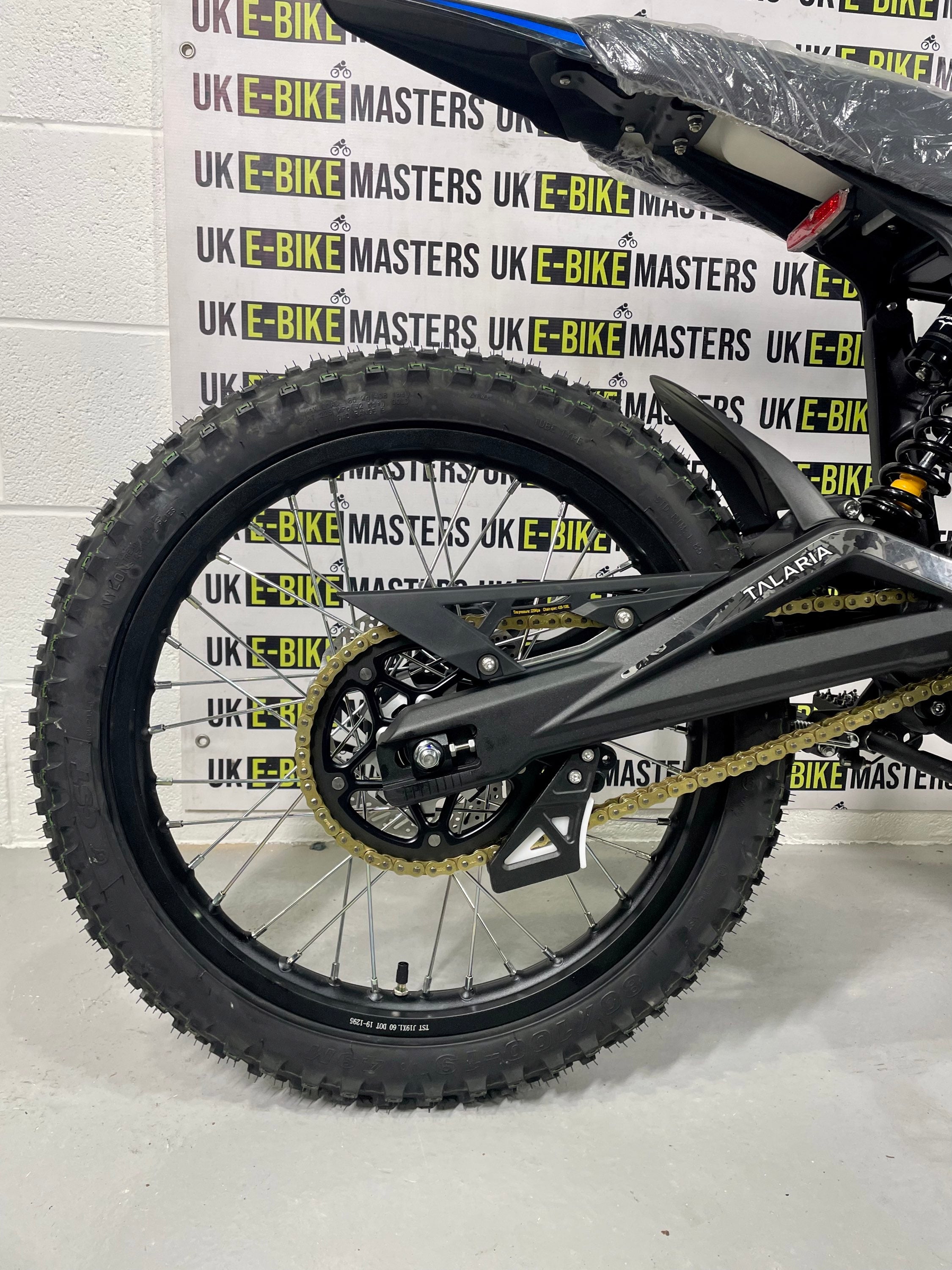

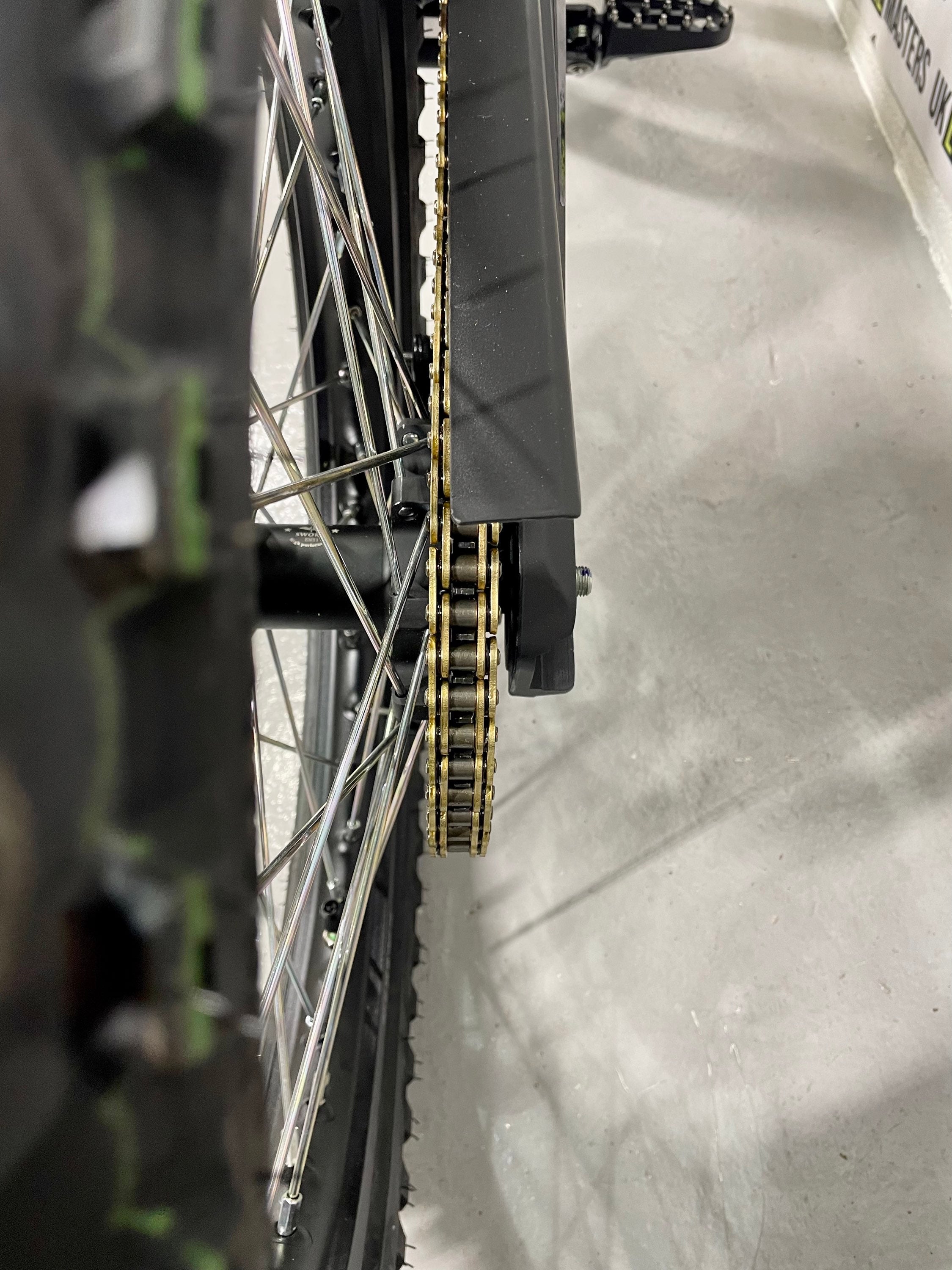

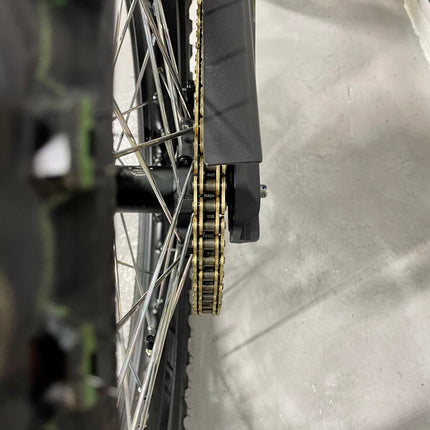

Drive Transmission: 418-108T Chain
Rear Sprocket: 48T
