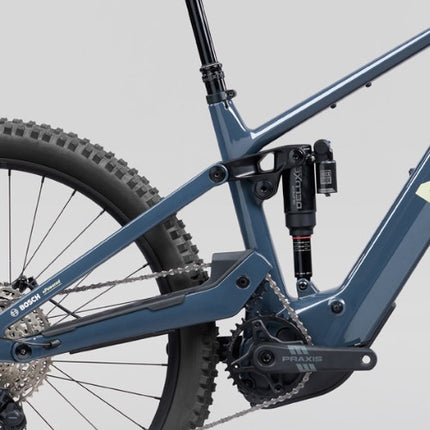

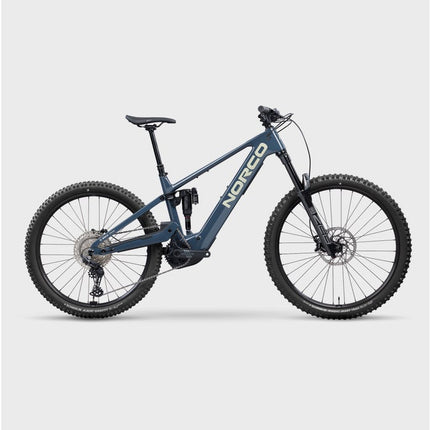

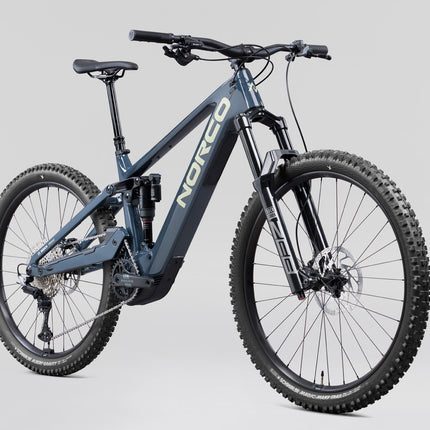

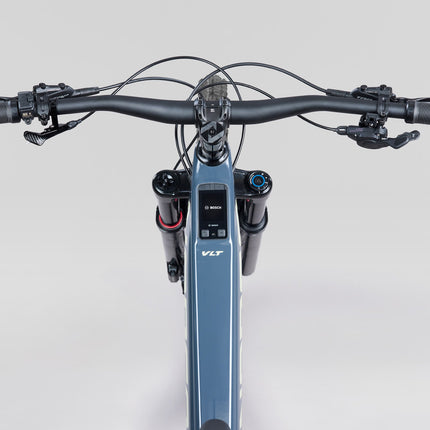

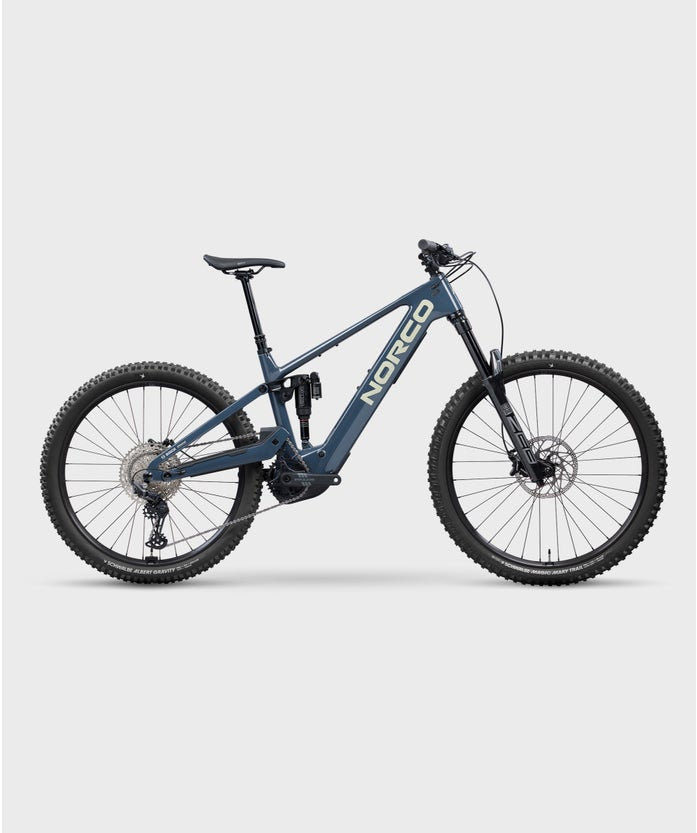

NORCO SIGHT VLT CX C3 29" / 27.5" BIKE

Description

 Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.

  • Discipline: All-Mountain/E-MTB
  • Travel: Front 160mm / Rear 150mm
  • Wheel Size: Mixed

  • NEW TECHNOLOGY

    • The perfect blend of power and low weight
    • Quieter motor – all you hear is the trail
    • Maximum drive unit durability
    • Train harder, ride longer
    • Uncompromised ride quality across sizes
    • VPSHP suspension platform
    • Bosch eBike Flow App – personalize your experience and stay up to date
    • Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
    • No Other Way Limited Lifetime Warranty                      The perfect blend of power and low weight

    • With 85 Nm of maximum torque, 600 watts of peak motor power, and up to 340% support, this setup provides an ideal blend of power and enjoyment while balancing wear and range.

      SPECIFICATION

      FRAME CARBON FRAME, 150MM TRAVEL, UDH, EAGLE TRANSMISSION COMPATIBLE, RIDE ALIGNED™

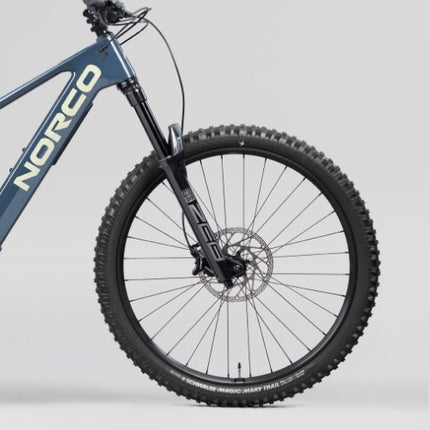

      FORK ROCKSHOX ZEB SELECT,160MM TRAVEL, 44MM
      REAR SHOCK ROCK SHOX SUPER DELUXE SELECT HBO, 205X60MM TR
      HEADSET FSA NO.55 SEALED BEARING, 1 1/8" - 1.8" TAPERED, ( ZS44/28.6 | ZS56/40 )
      GRIPS WTB WAVELENGTH, 140MM LENGTH
      HANDLE BAR NORCO 6061 DB ALLOY, 800MM, 25MM RISE(S2) - 35MM RISE(S3,S4,S5)
      STEM NORCO ALLOY, 40MM LENGTH, 35MM CLAMP
      SEAT POST TRANZX YSP23KL, 31.6MM, 150MM (S2) -170MM (S3) -200MM (S4, S5)
      SEAT POST CLAMP NORCO ALLOY NUTTED CLAMP, 34.9MM ID
      SADDLE WTB ROCKET FUSION MED, 142X250 MM
      FRONT BRAKE TRP SLATE EVO, ORAGANIC PADS
      FRONT BRAKE ROTOR TRP RS01E, 203MM, 2.3MM THICKNESS, 6 BOLT
      REAR BRAKE TRP SLATE EVO, ORAGANIC PADS
      REAR BRAKE ROTOR TRP RS01E, 180MM, 2.3MM THICKNESS, 6 BOLT
      BRAKE LEVERS TRP SLATE EVO
      SHIFTER REAR SHIMANO DEORE SL-M6100-R, 12SPD
      REAR DERAILLEUR SHIMANO DEORE RD-M6100, SGS, 12SPD
      CASSETTE SHIMANO DEORE CS-M6100-12, 10-51T, 12SP
      CHAIN SHIMANO DEORE CN-M6100, 12SPD
      CRANKSET PRAXIS HD ALUMINUM BOSCH CRANKS, 34T, 155MM (S2,S3) - 160MM
      FRONT HUB SHIMANO HB-MTC500-15-B,15X110MM BOOST, 32H, C-LOCK
      REAR HUB SHIMANO FH-TC500-MS-B, 12X148MM BOOST, MICRO SPLINE, 32H, C-LOCK
      SPOKES/NIPPLES SAPIM SPRINT DB SPOKES 2.0/1.8/2.0,BLACK STAINLESS STEEL
      RIMS WTB ST I30 TCS 2.0 ,30 MM, 32H, 29"-27.5" F/R
      FRONT TYRE SCHWALBE MAGIC MARY, TRAIL CASING, ULTRA SOFT , RADIAL, 29X2.5"
      REAR TYRE SCHWALBE ALBERT, GRAVITY PRO, SOFT, RADIAL, 27.5X2.5"
      DRIVE UNIT BOSCH PERFORMANCE LINE CX, 100 NM / 750W
      BATTERY BOSCH POWERTUBE 800 WH
      SWITCH BOSCH BRC 3300 MINI REMOTE 22.2MM
      POWER BUTTON KIOX 400C

      Please note: Specifications are subject to change without notice.

      GEOMETRY

      All measurements are shown in millimetres.


      SIZE 2 SIZE 3 SIZE 4 SIZE 5
      WHEEL SIZE 29" / 27.5"
      TRAVEL (MM FRONT / MM REAR) 160/150MM
      REACH 447.5 472.5 497.5 522.5
      STACK 627 636 645 654
      HTA HEAD TUBE ANGLE 64
      OS FORK OFFSET 44
      ST SEAT TUBE LENGTH 395 415 445  475
      STA EFFECTIVE SEAT TUBE ANGLE 77.25 77.5 77.75 78
      RC REAR CENTRE LENGTH 432 436 440 444
      RC REAR CENTRE LENGTH AT SAG 441 445 449 453
      BB BOTTOM BRACKET DROP 25/5
      BBH BOTTOM BRACKET HEIGHT 349
      HTT HORIZONTAL TOP TUBE 589 613 637 661
      WB WHEELBASE 1222 1255 1289 1322
      SOH STANDOVER 701 711 714 729
      HT HEAD TUBE LENGTH 115 125 135 145
      TRAIL 133
      RECOMMENDED SEATPOST DROP 150 170 200 200
      MAXIMUM POST INSERTION 250 270 300 330
      STEM LENGTH 40
      CRANK LENGTH 165
      TYRE SIZE 2.35" - 2.6"
      WATER BOTTLE COMPATIBLE 1 X 620ML 1 X 750ML

      SIZE GUIDE

NORCO SIGHT VLT CX C3 29" / 27.5" BIKE

Product form

Free pickup in our shop(s)

1 in stock

£5,999.00 Incl. VAT

    • Fast shipping
    • Guarunteed top quality components
    • Same day collection in store

    Description

     Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.

    • Discipline: All-Mountain/E-MTB
    • Travel: Front 160mm / Rear 150mm
    • Wheel Size: Mixed

    • NEW TECHNOLOGY

      • The perfect blend of power and low weight
      • Quieter motor – all you hear is the trail
      • Maximum drive unit durability
      • Train harder, ride longer
      • Uncompromised ride quality across sizes
      • VPSHP suspension platform
      • Bosch eBike Flow App – personalize your experience and stay up to date
      • Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
      • No Other Way Limited Lifetime Warranty                      The perfect blend of power and low weight

      • With 85 Nm of maximum torque, 600 watts of peak motor power, and up to 340% support, this setup provides an ideal blend of power and enjoyment while balancing wear and range.

        SPECIFICATION

        FRAME CARBON FRAME, 150MM TRAVEL, UDH, EAGLE TRANSMISSION COMPATIBLE, RIDE ALIGNED™
        FORK ROCKSHOX ZEB SELECT,160MM TRAVEL, 44MM
        REAR SHOCK ROCK SHOX SUPER DELUXE SELECT HBO, 205X60MM TR
        HEADSET FSA NO.55 SEALED BEARING, 1 1/8" - 1.8" TAPERED, ( ZS44/28.6 | ZS56/40 )
        GRIPS WTB WAVELENGTH, 140MM LENGTH
        HANDLE BAR NORCO 6061 DB ALLOY, 800MM, 25MM RISE(S2) - 35MM RISE(S3,S4,S5)
        STEM NORCO ALLOY, 40MM LENGTH, 35MM CLAMP
        SEAT POST TRANZX YSP23KL, 31.6MM, 150MM (S2) -170MM (S3) -200MM (S4, S5)
        SEAT POST CLAMP NORCO ALLOY NUTTED CLAMP, 34.9MM ID
        SADDLE WTB ROCKET FUSION MED, 142X250 MM
        FRONT BRAKE TRP SLATE EVO, ORAGANIC PADS
        FRONT BRAKE ROTOR TRP RS01E, 203MM, 2.3MM THICKNESS, 6 BOLT
        REAR BRAKE TRP SLATE EVO, ORAGANIC PADS
        REAR BRAKE ROTOR TRP RS01E, 180MM, 2.3MM THICKNESS, 6 BOLT
        BRAKE LEVERS TRP SLATE EVO
        SHIFTER REAR SHIMANO DEORE SL-M6100-R, 12SPD
        REAR DERAILLEUR SHIMANO DEORE RD-M6100, SGS, 12SPD
        CASSETTE SHIMANO DEORE CS-M6100-12, 10-51T, 12SP
        CHAIN SHIMANO DEORE CN-M6100, 12SPD
        CRANKSET PRAXIS HD ALUMINUM BOSCH CRANKS, 34T, 155MM (S2,S3) - 160MM
        FRONT HUB SHIMANO HB-MTC500-15-B,15X110MM BOOST, 32H, C-LOCK
        REAR HUB SHIMANO FH-TC500-MS-B, 12X148MM BOOST, MICRO SPLINE, 32H, C-LOCK
        SPOKES/NIPPLES SAPIM SPRINT DB SPOKES 2.0/1.8/2.0,BLACK STAINLESS STEEL
        RIMS WTB ST I30 TCS 2.0 ,30 MM, 32H, 29"-27.5" F/R
        FRONT TYRE SCHWALBE MAGIC MARY, TRAIL CASING, ULTRA SOFT , RADIAL, 29X2.5"
        REAR TYRE SCHWALBE ALBERT, GRAVITY PRO, SOFT, RADIAL, 27.5X2.5"
        DRIVE UNIT BOSCH PERFORMANCE LINE CX, 100 NM / 750W
        BATTERY BOSCH POWERTUBE 800 WH
        SWITCH BOSCH BRC 3300 MINI REMOTE 22.2MM
        POWER BUTTON KIOX 400C

        Please note: Specifications are subject to change without notice.

        GEOMETRY

        All measurements are shown in millimetres.


        SIZE 2 SIZE 3 SIZE 4 SIZE 5
        WHEEL SIZE 29" / 27.5"
        TRAVEL (MM FRONT / MM REAR) 160/150MM
        REACH 447.5 472.5 497.5 522.5
        STACK 627 636 645 654
        HTA HEAD TUBE ANGLE 64
        OS FORK OFFSET 44
        ST SEAT TUBE LENGTH 395 415 445  475
        STA EFFECTIVE SEAT TUBE ANGLE 77.25 77.5 77.75 78
        RC REAR CENTRE LENGTH 432 436 440 444
        RC REAR CENTRE LENGTH AT SAG 441 445 449 453
        BB BOTTOM BRACKET DROP 25/5
        BBH BOTTOM BRACKET HEIGHT 349
        HTT HORIZONTAL TOP TUBE 589 613 637 661
        WB WHEELBASE 1222 1255 1289 1322
        SOH STANDOVER 701 711 714 729
        HT HEAD TUBE LENGTH 115 125 135 145
        TRAIL 133
        RECOMMENDED SEATPOST DROP 150 170 200 200
        MAXIMUM POST INSERTION 250 270 300 330
        STEM LENGTH 40
        CRANK LENGTH 165
        TYRE SIZE 2.35" - 2.6"
        WATER BOTTLE COMPATIBLE 1 X 620ML 1 X 750ML

        SIZE GUIDE
